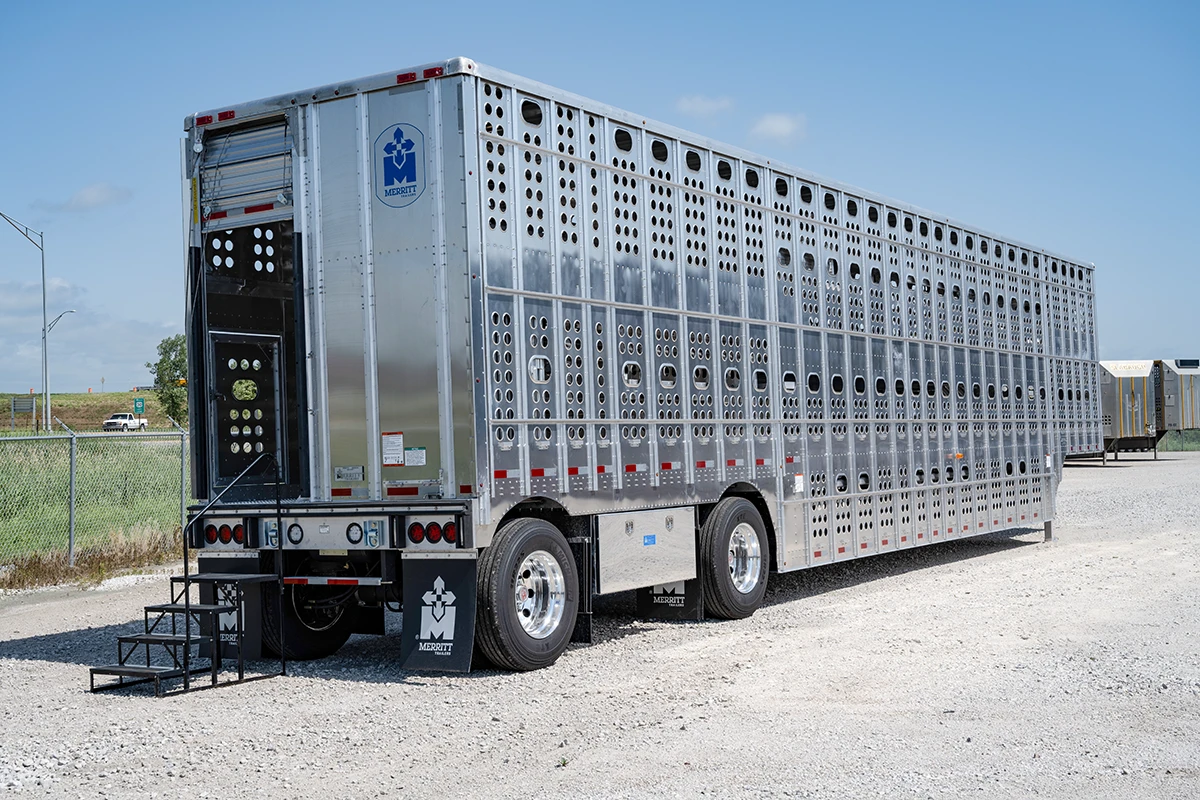

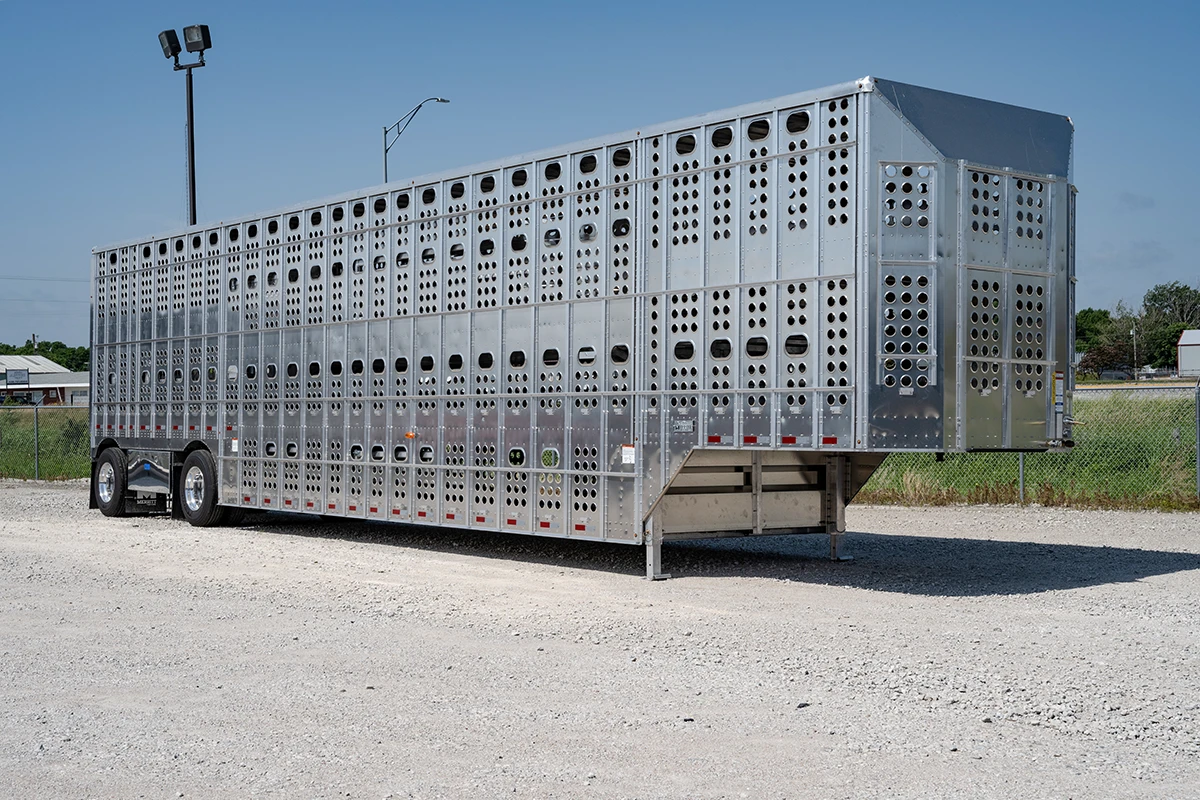

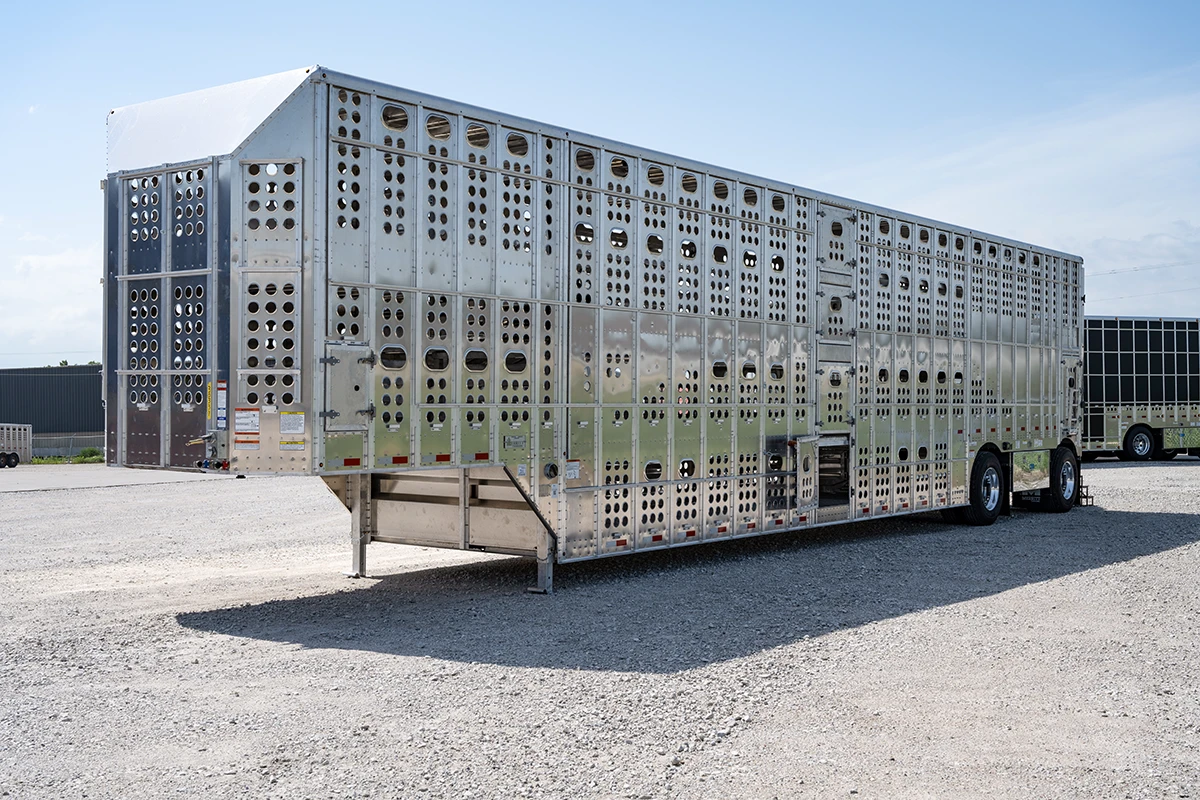

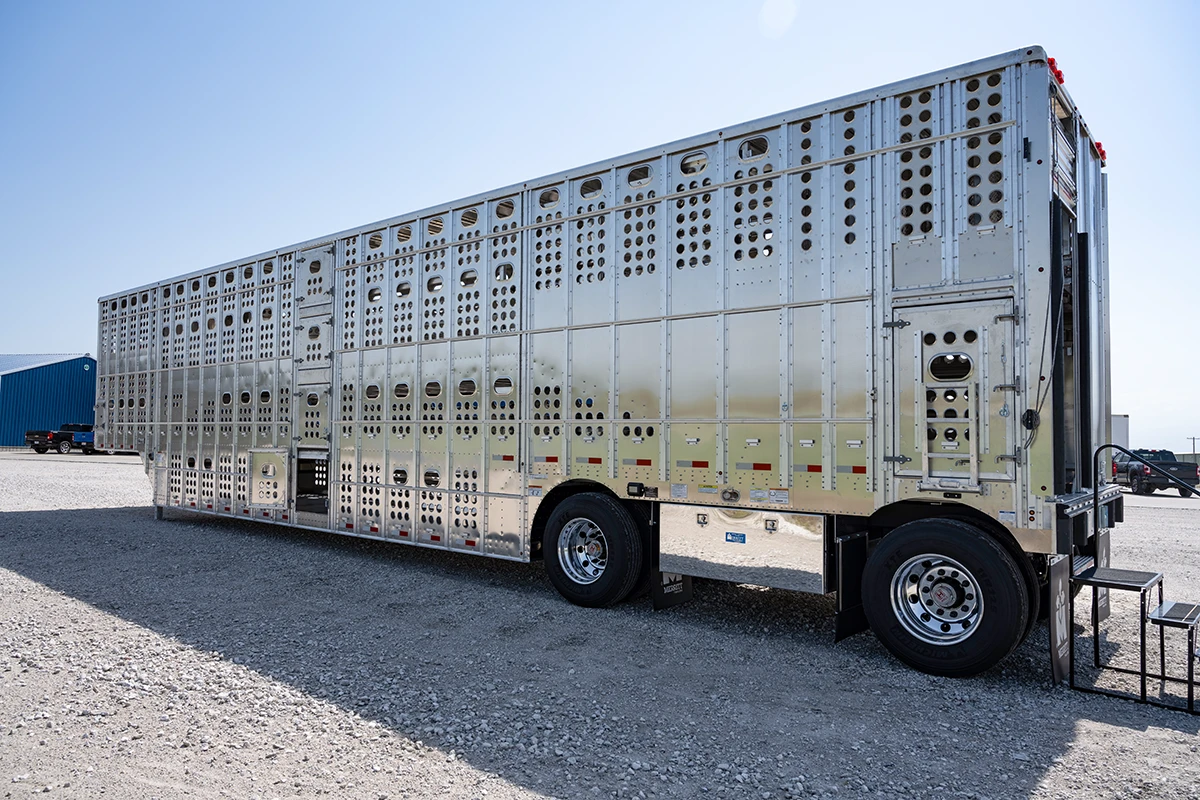

Hog Legend Trailers
Introducing the Merritt Hog Legend – our first hog-specific trailer line, designed in collaboration with the people who know hog transport best: our customers. Every feature of the Legend reflects direct input from producers and haulers, ensuring it meets the real-world demands of hog transport. From optimized airflow, ease of operation and function and redesigned flooring options to secure handling and easy cleanouts, this line is built with durability and animal welfare in mind. With the Legend, you’re not just choosing Merritt’s trusted quality; you’re choosing a trailer crafted by the experts who use it every day.
Standard Hog Legend Trailer Features

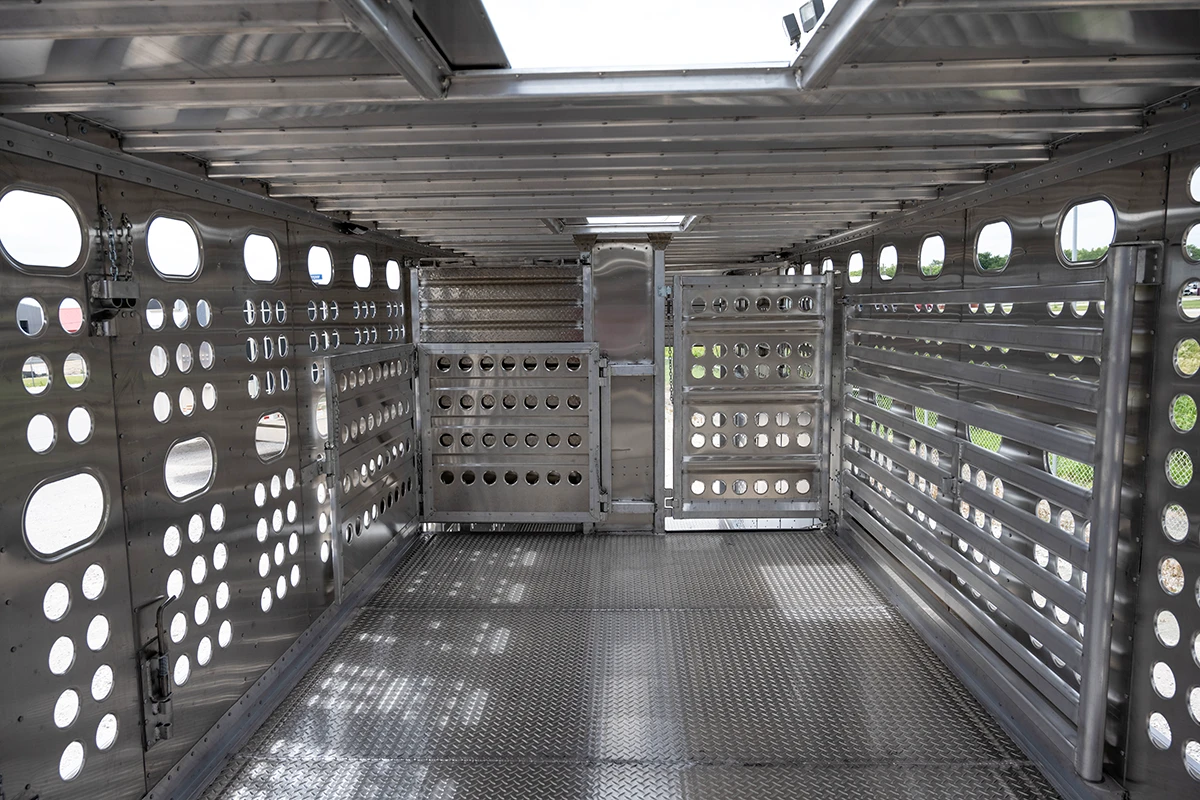

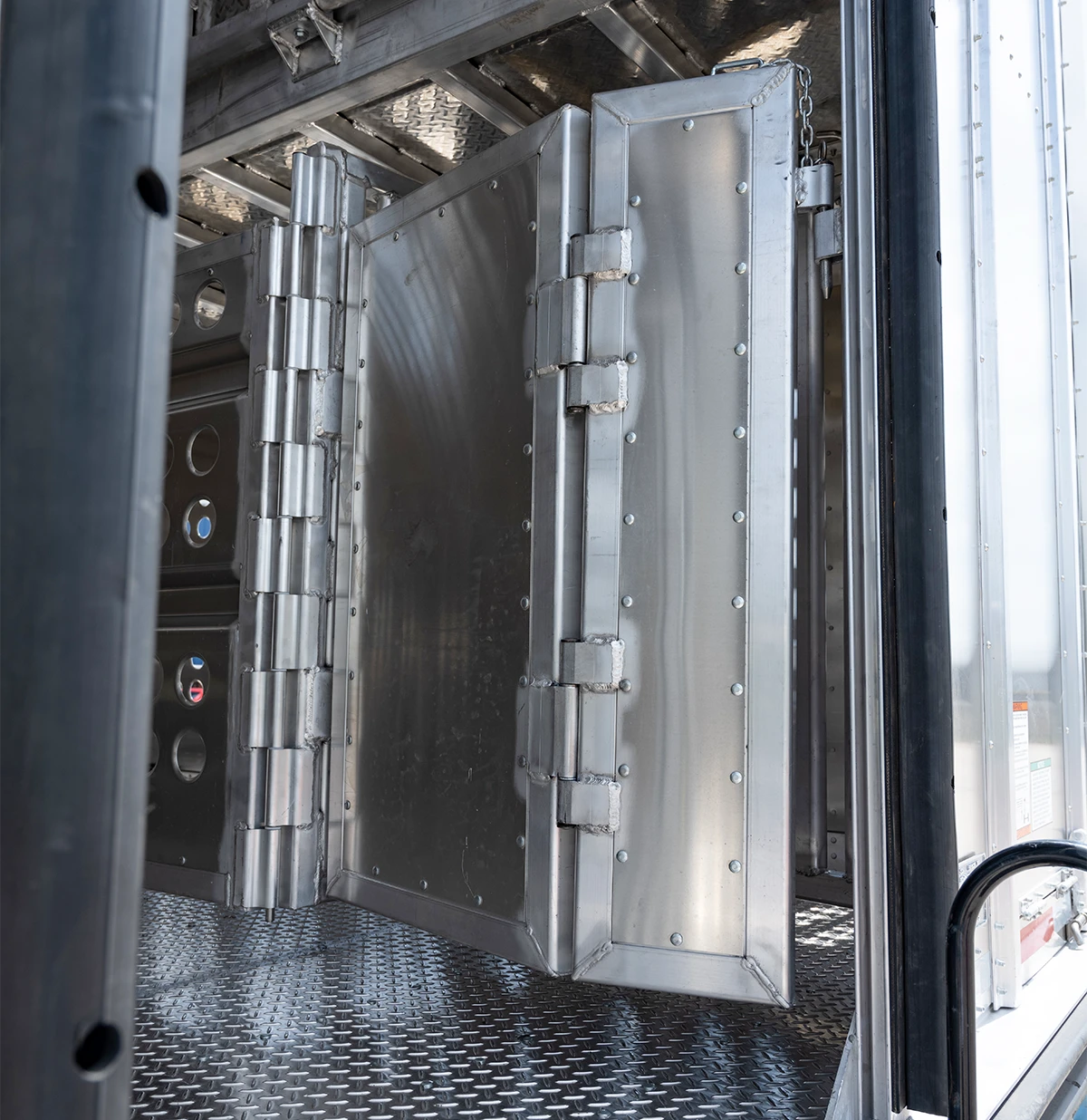

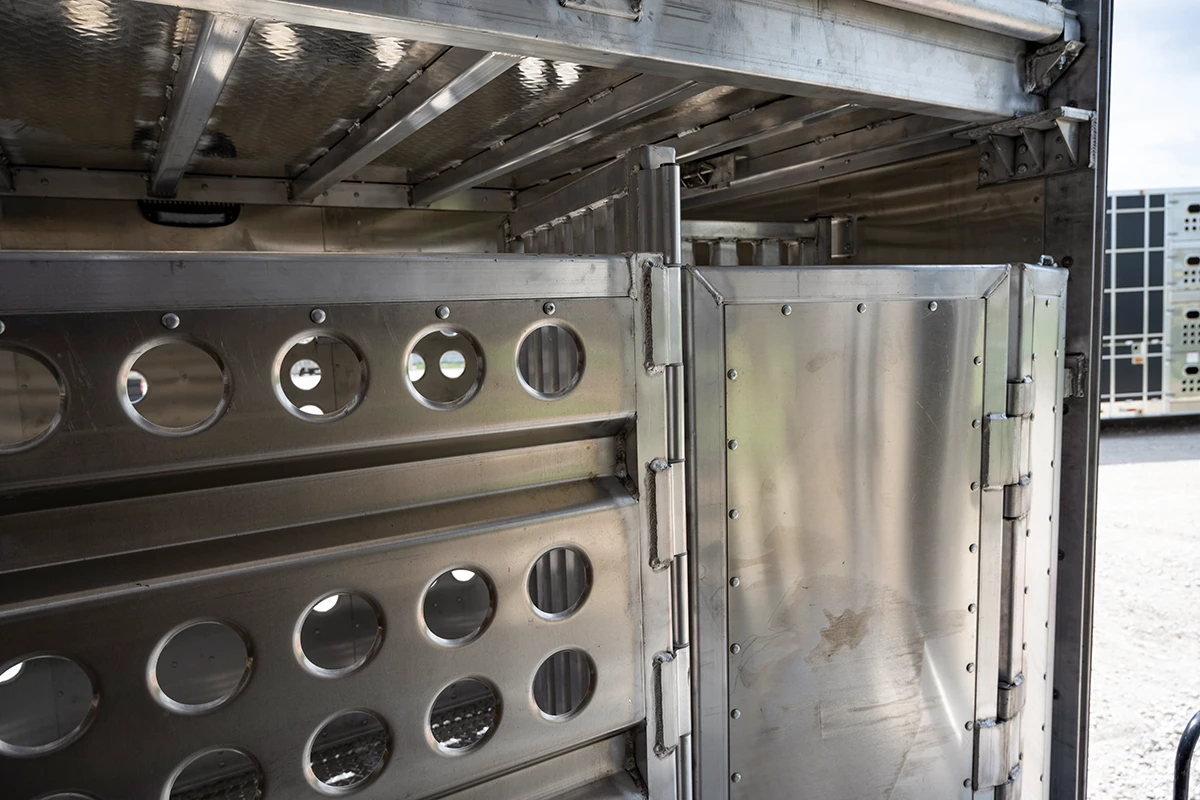

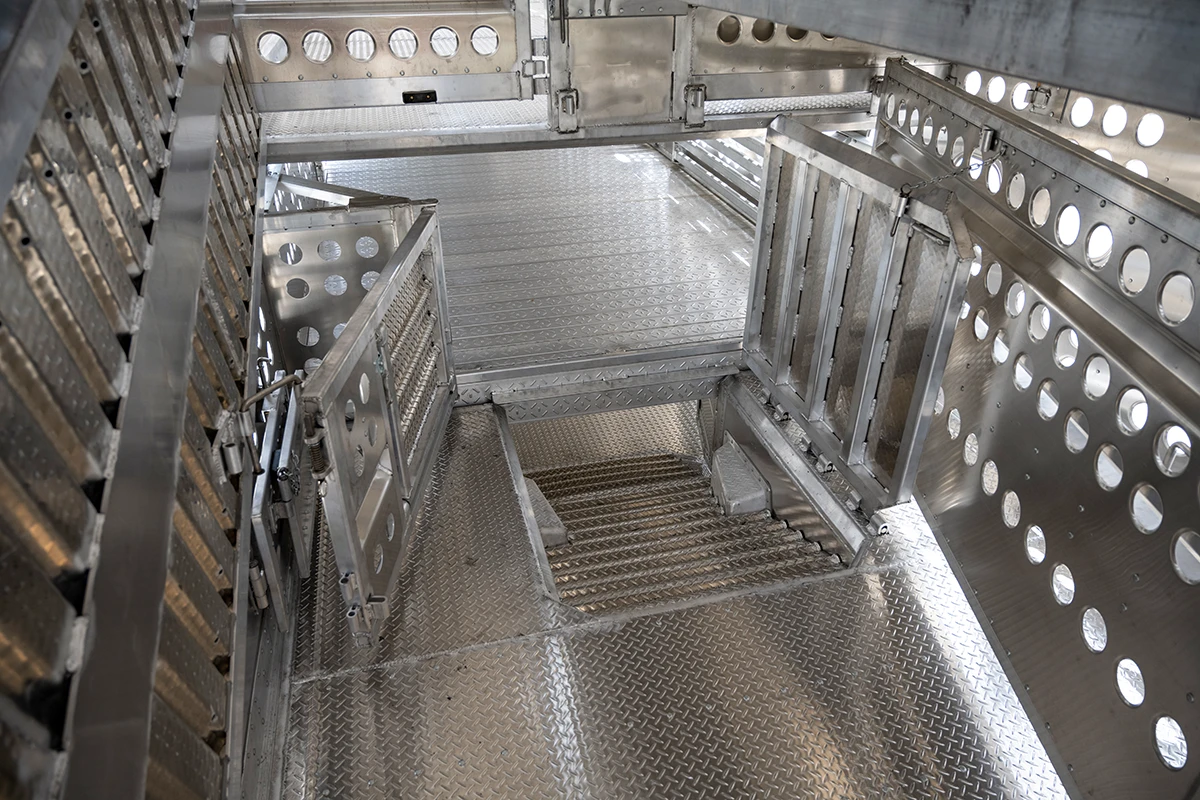

Folding Guide Gate
Folding guide gates with protective hiding panels allow drivers to remain safely in the trailer and protected from animals while being unseen providing a smoother loading process.

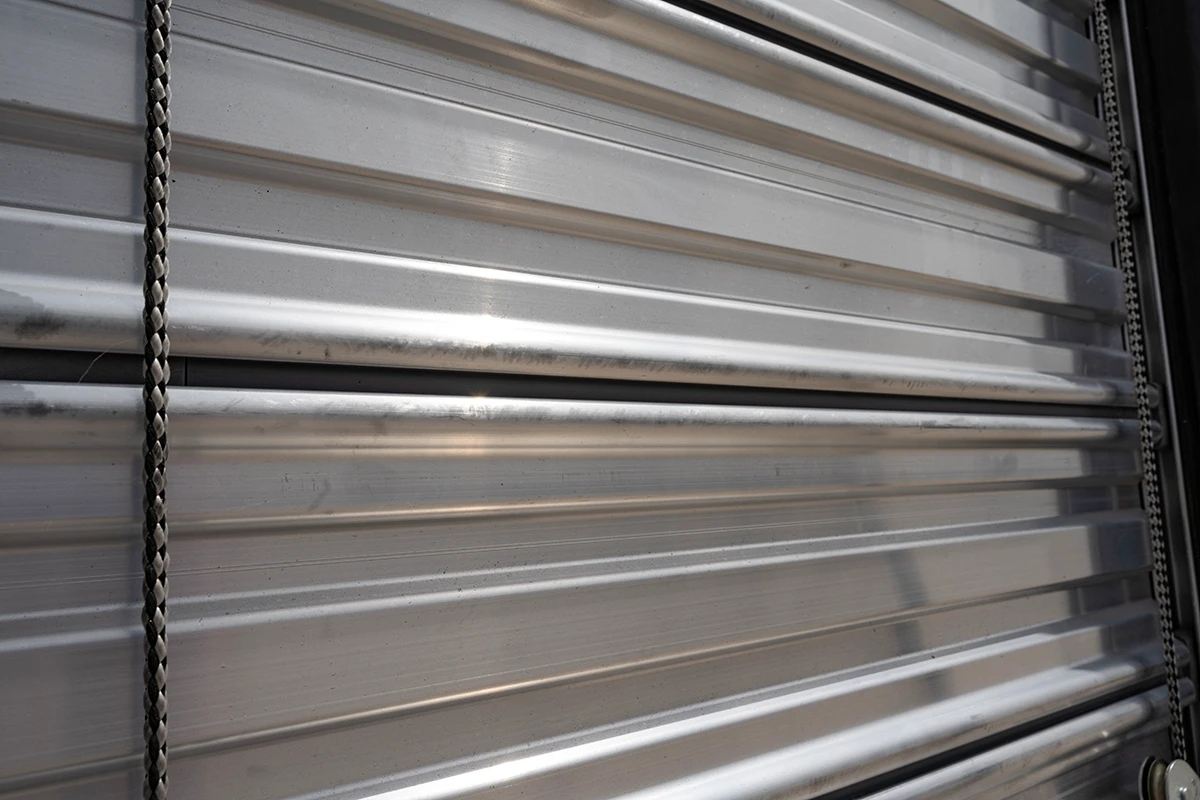

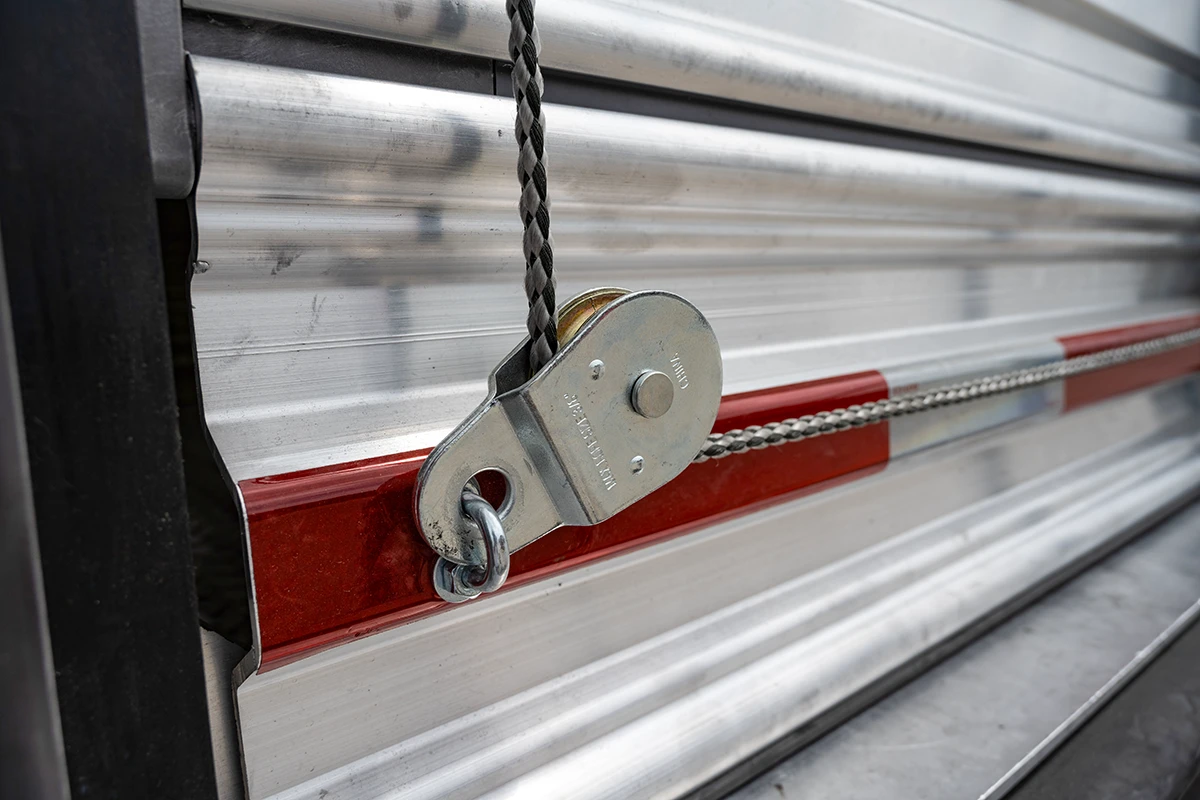

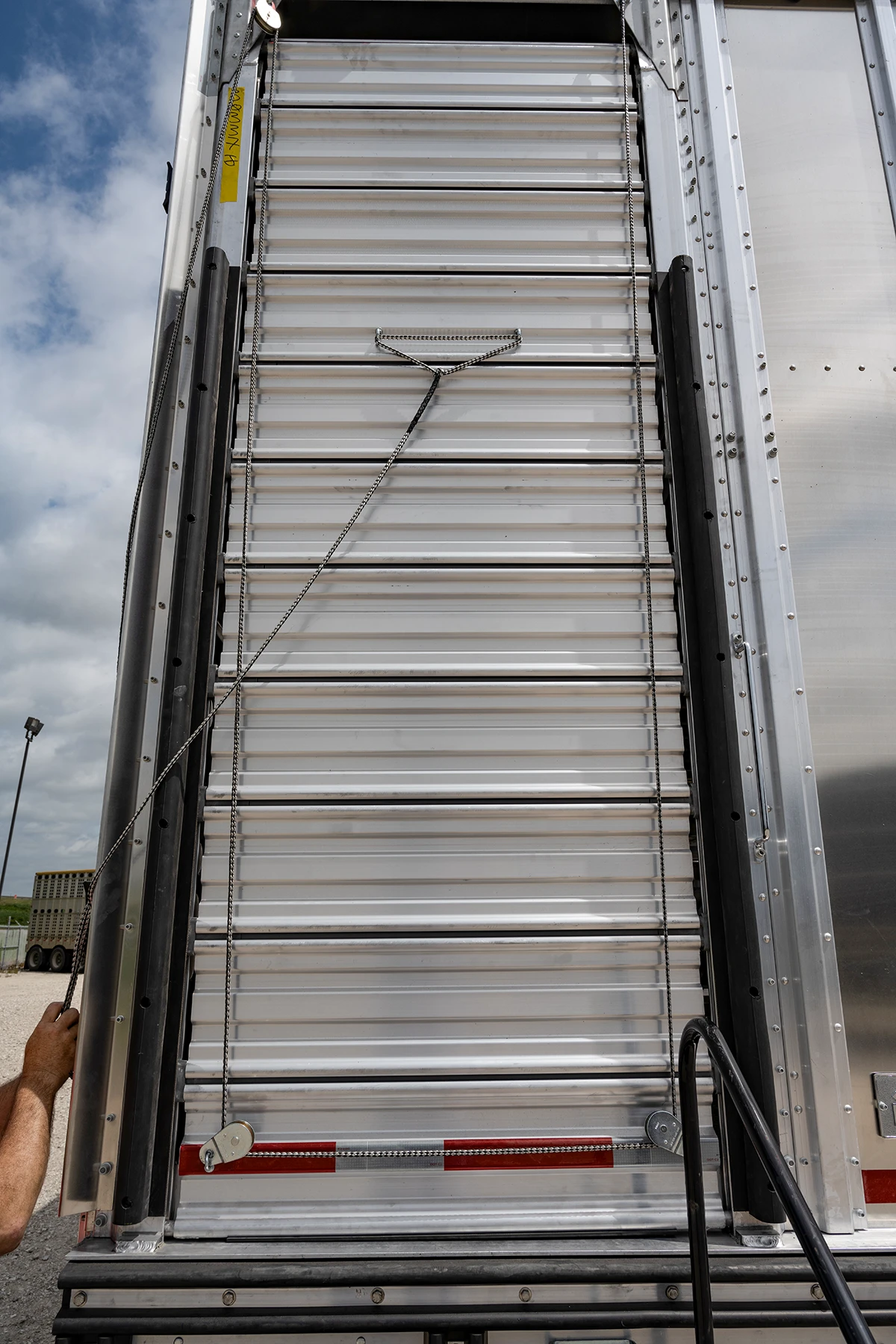

Roll-Up Door Fillers
Merritt’s door gap filler keeps livestock warmer in the winter by eliminating the wind that comes in through the gate. This option is also removable for warmer months when more airflow is needed.
Steel Sub Frame
All Merritt trailers are built with a welded steel subframe, designed to maximize strength, durability, and the overall longevity of your trailer. Our steel frames undergo a two-part painting process, providing enhanced protection against corrosion and electrolysis, ensuring your trailer remains reliable and resilient for years to come.

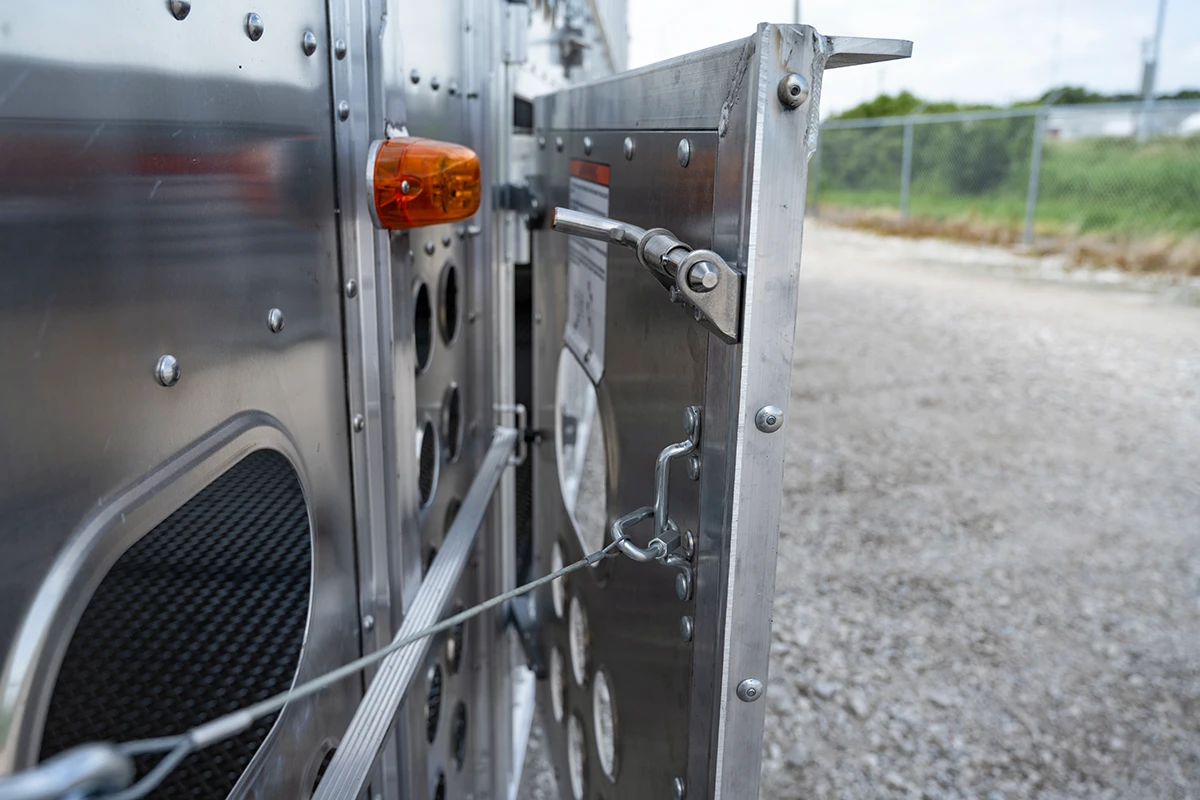

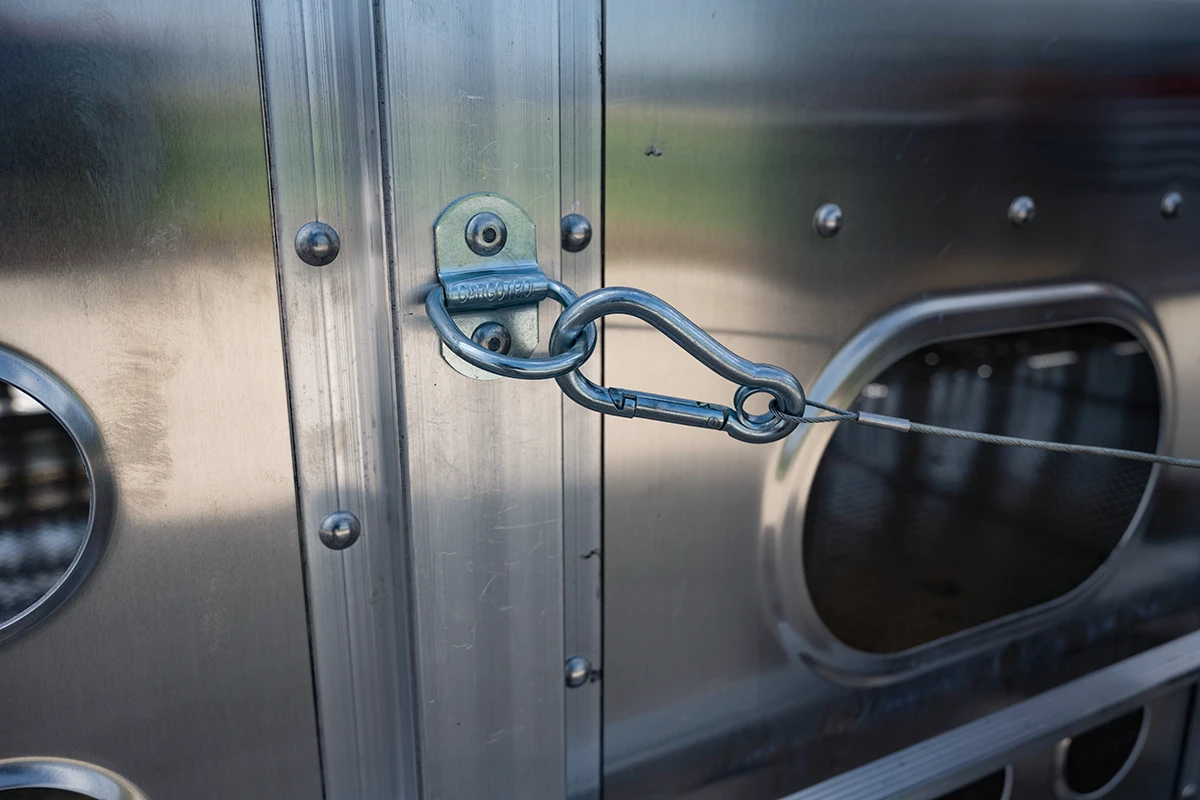

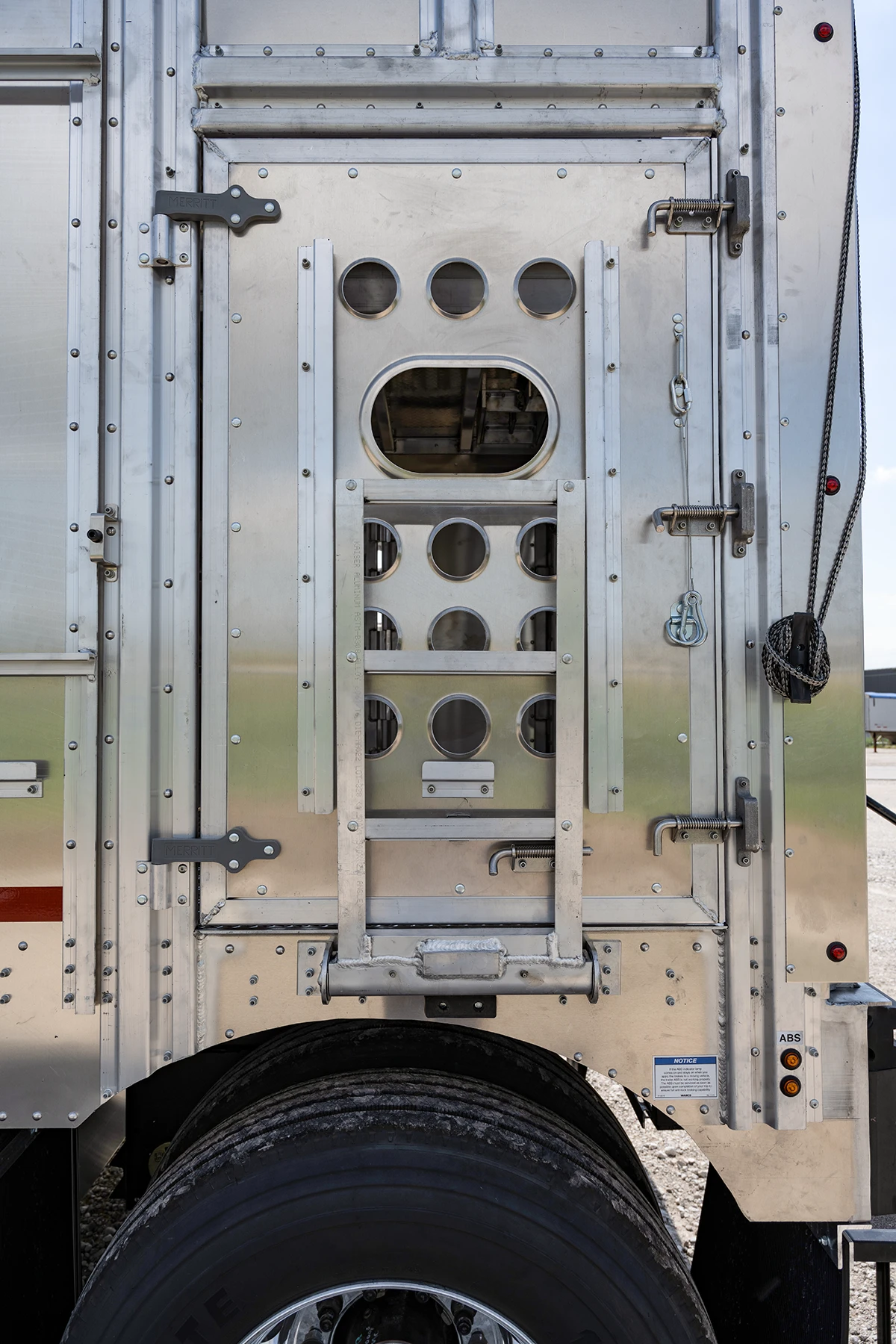

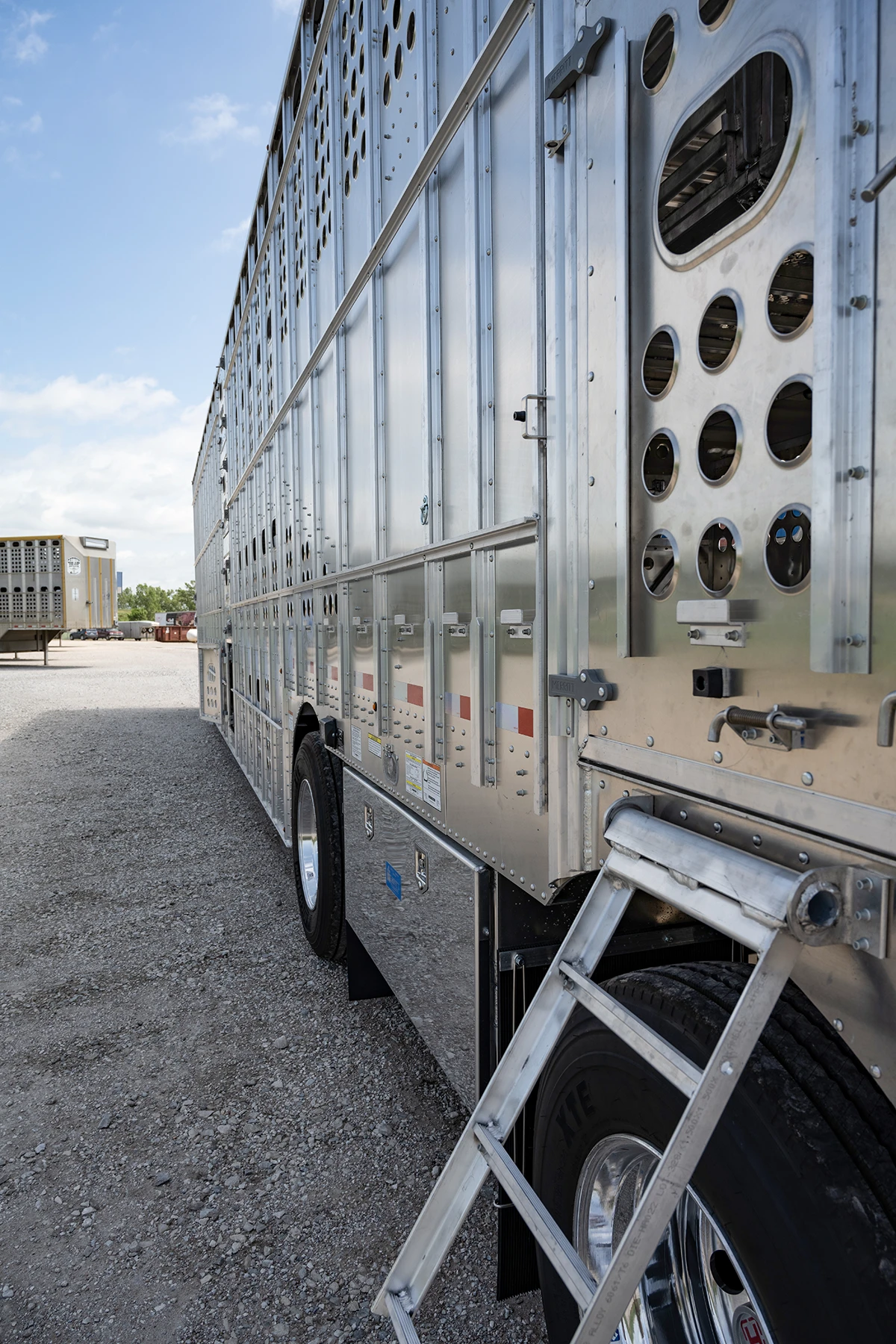

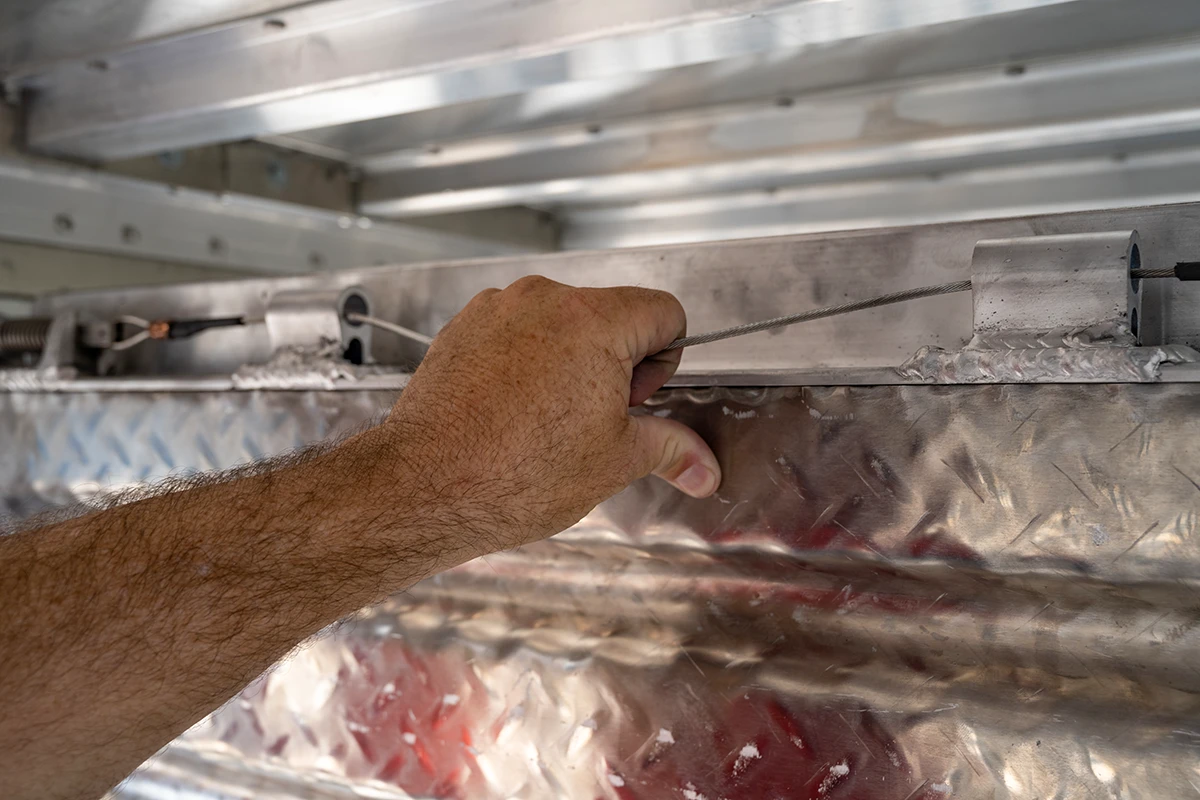

30” Side Door Holdback
A single-hand-operation-cable-style pull cord allow for easy washouts without the doors closing on you.

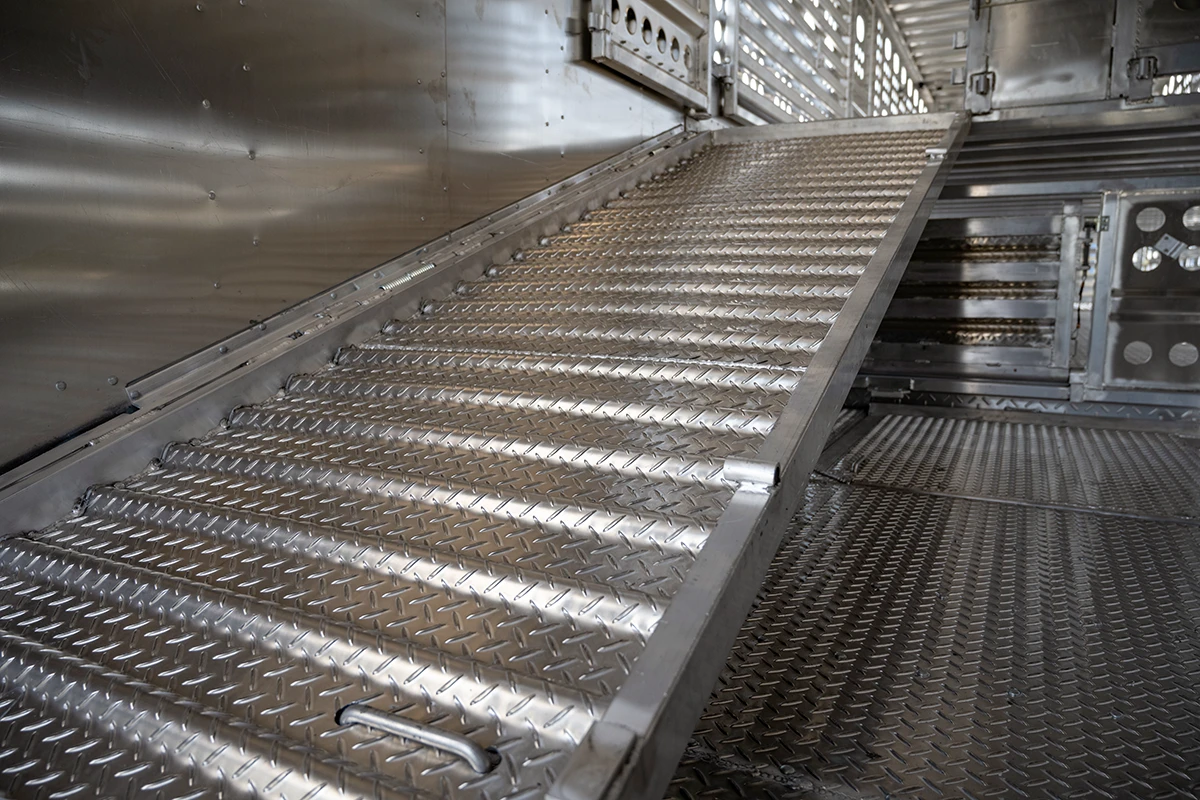

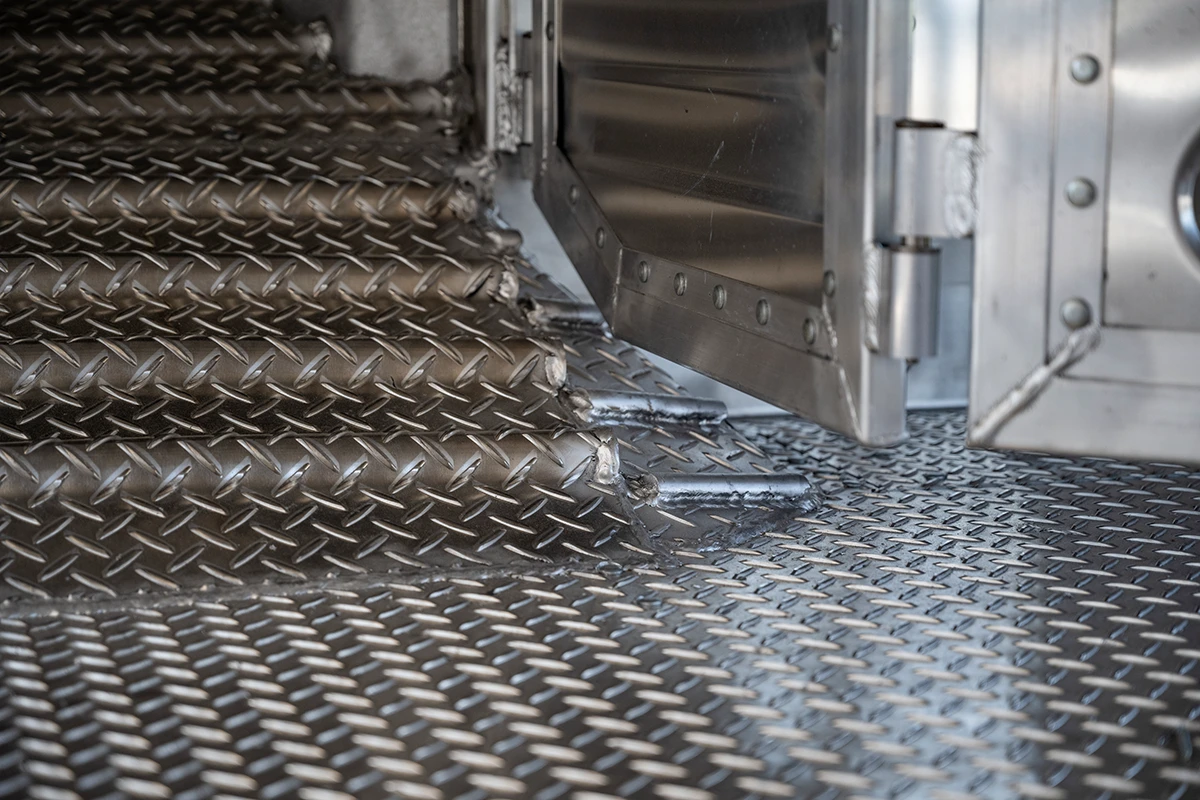

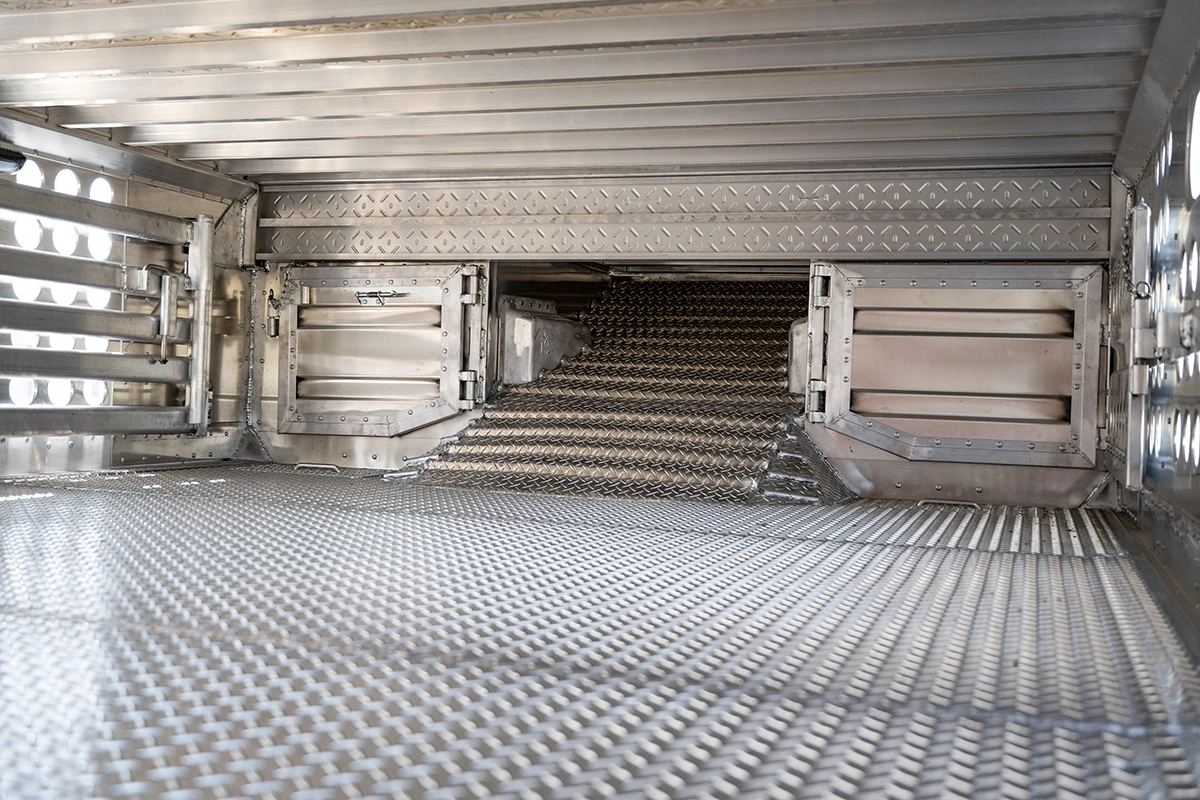

Loading Ramps with Built-In Cleating
1″ humps on 5″ centers on all ramp locations.

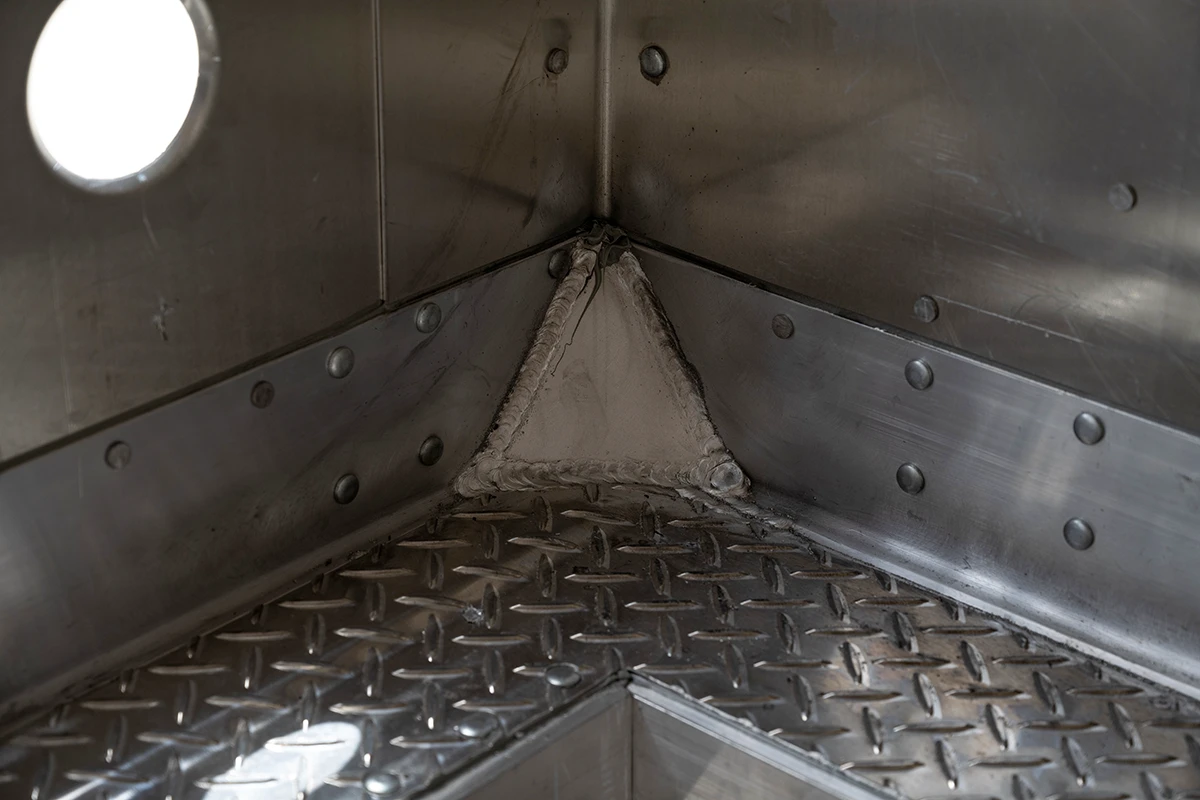

Built for Easy Clean-Outs
Easy clean-outs with oversized drains and washout wedge panels.

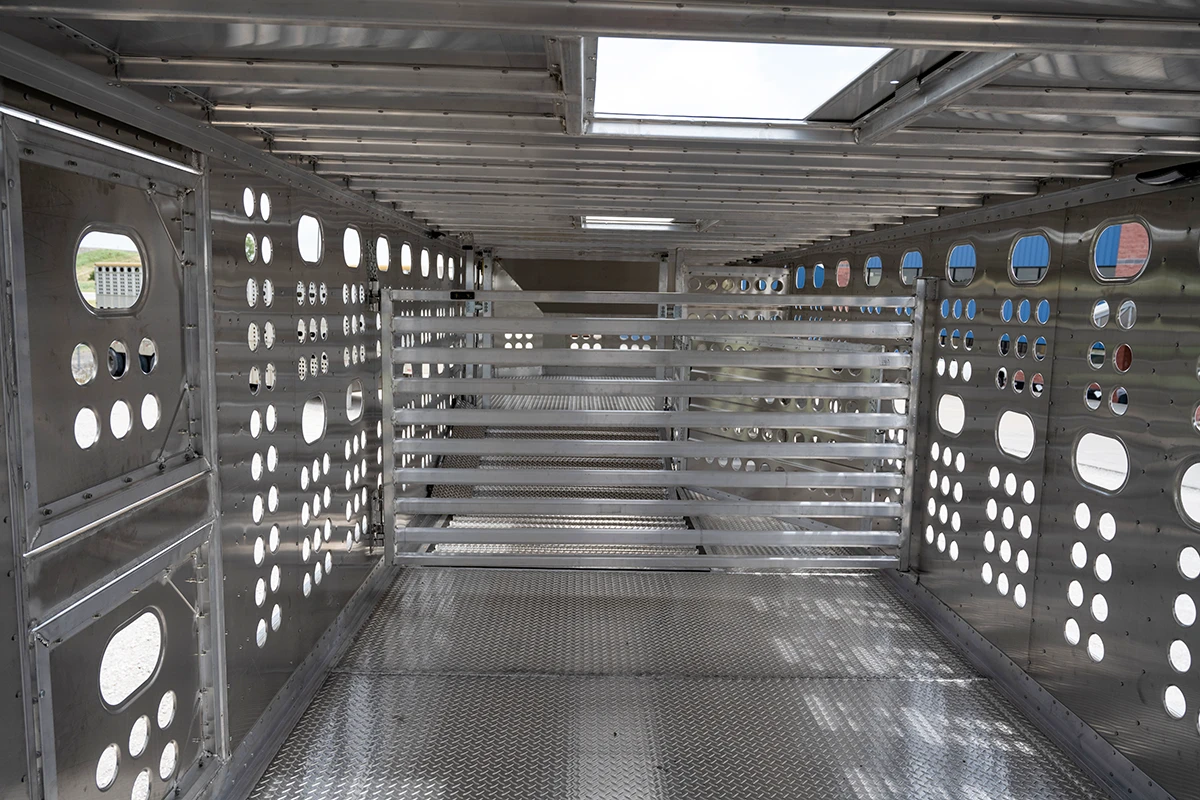

Roof Hatch
Keep your drivers safe and give your livestock extra ventilation when the weather requires it. The Merritt roof is built to handle this popular option.
Bio-Security Cross Member
Merritt’s bio-security cross-member is an enclosed extrusion that will shed manure and wash water quick & easy.

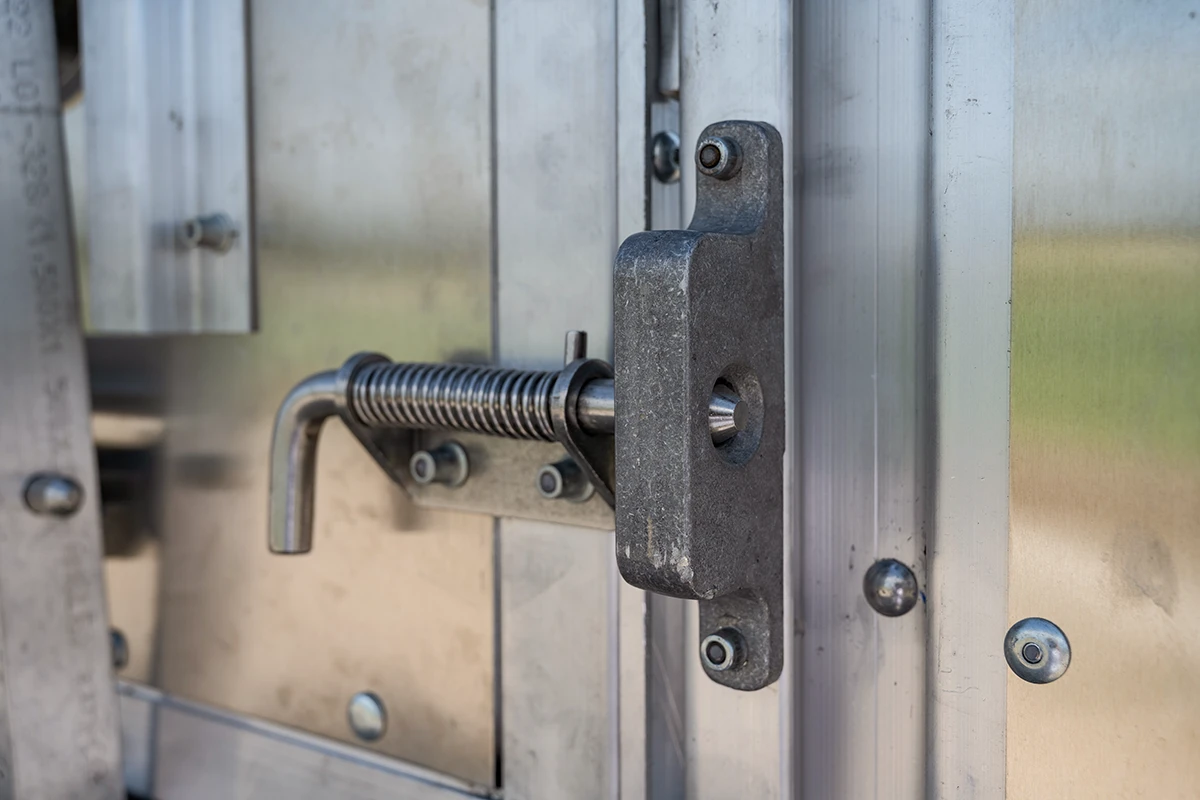

Walker-Style Spring-Locking Pins
This latch style is spring-loaded and easily locks in place. The spring tension prevents animals from lifting the pin.

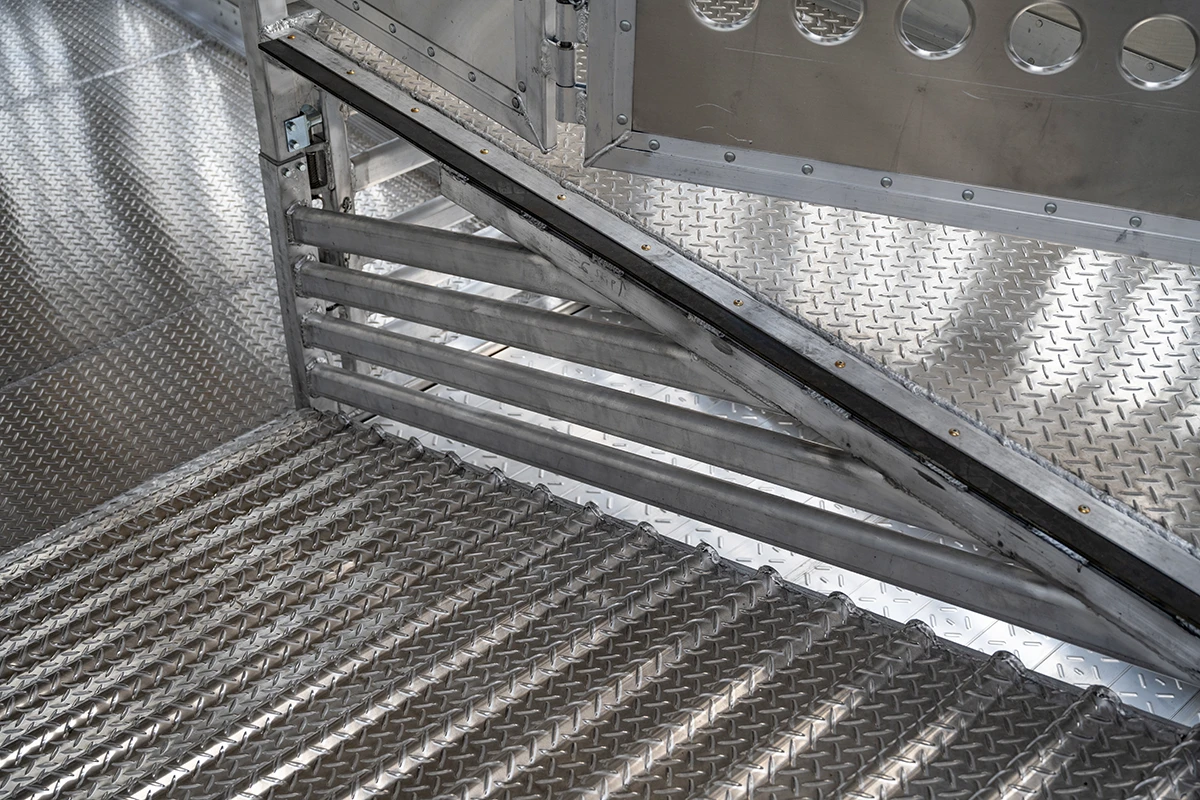

Hog Filler Tubes
Merritt Hog Legend trailers come standard with hog filler tubes to prevent any animals from falling between the decks.

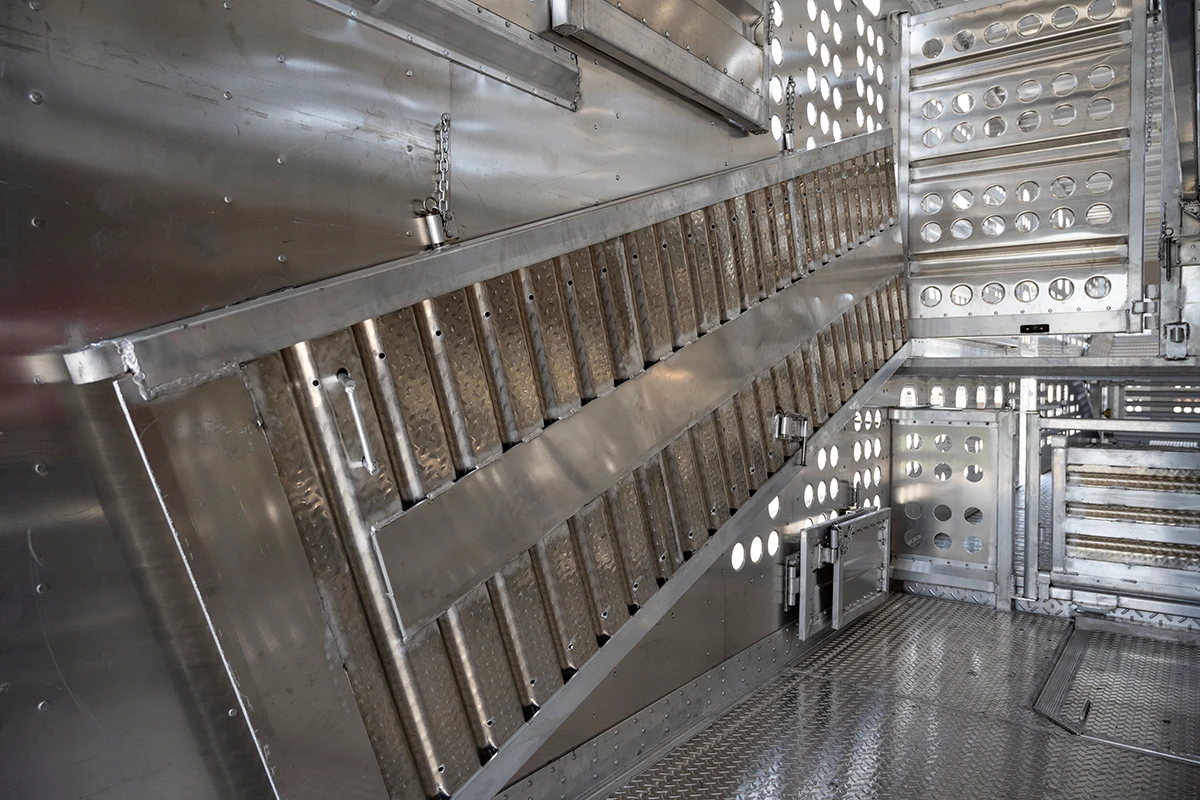

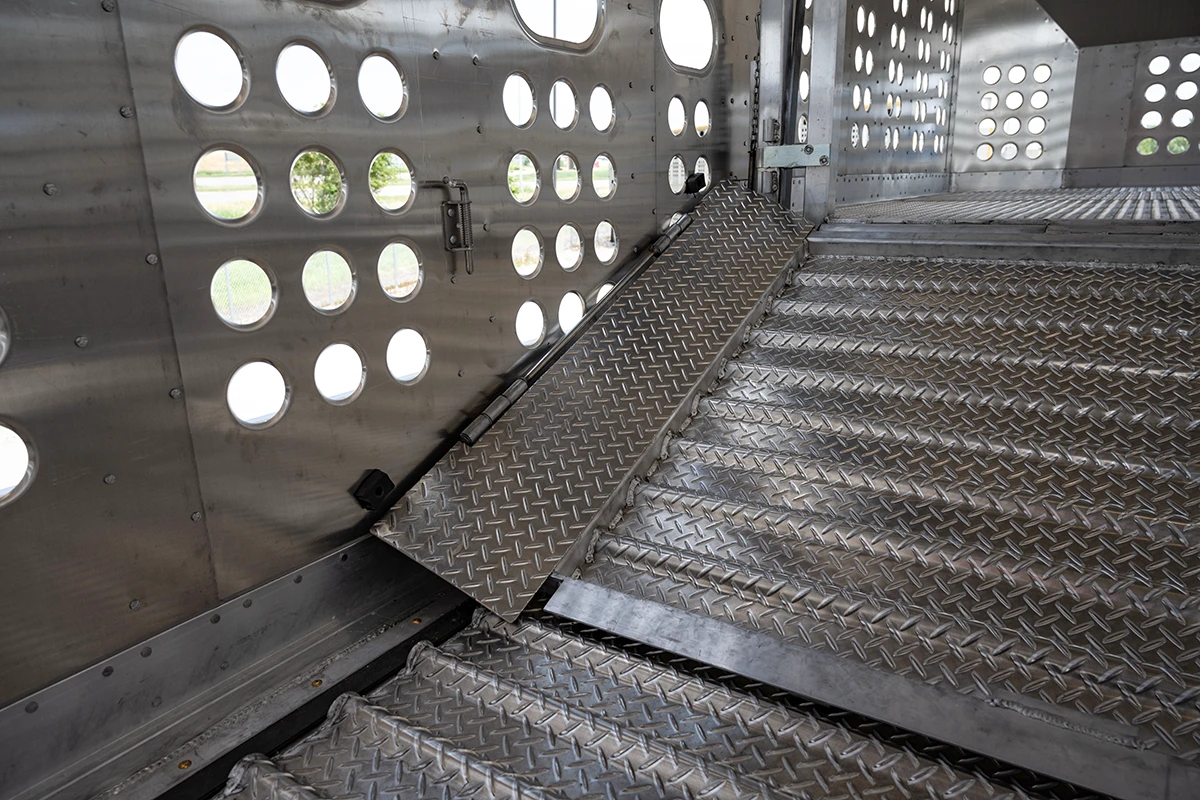

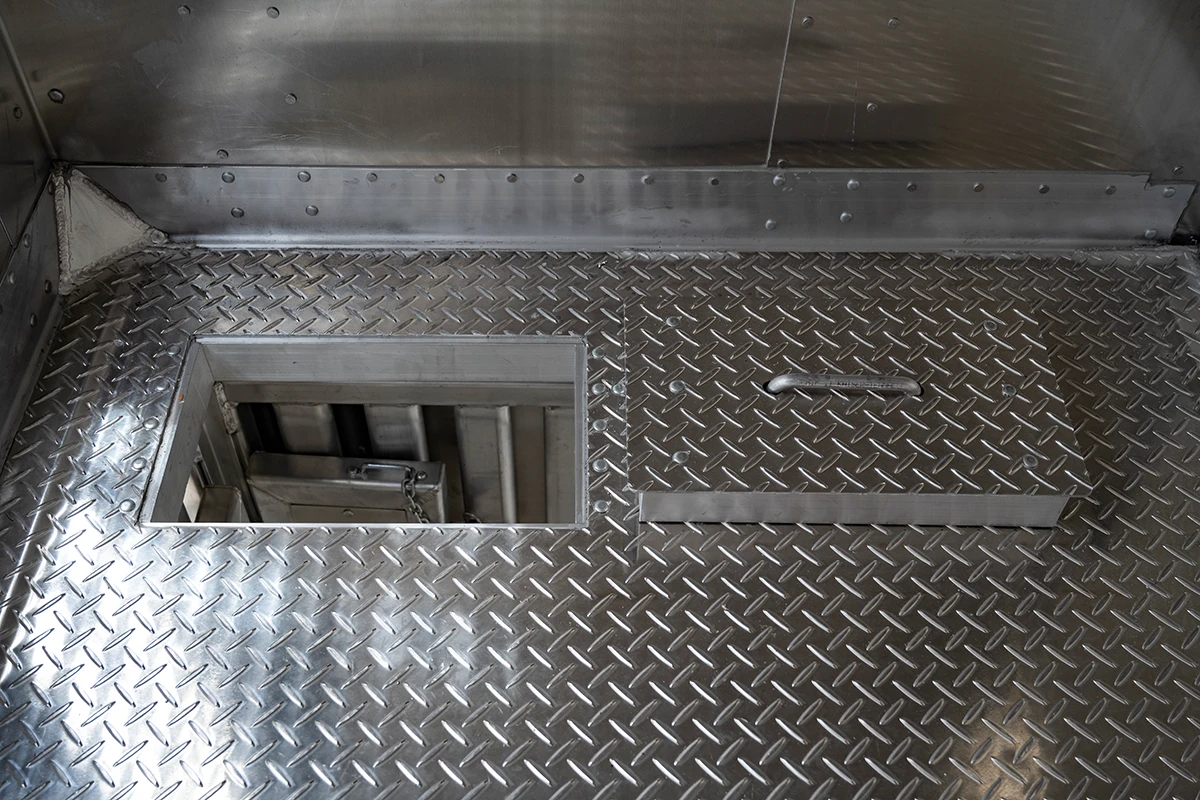

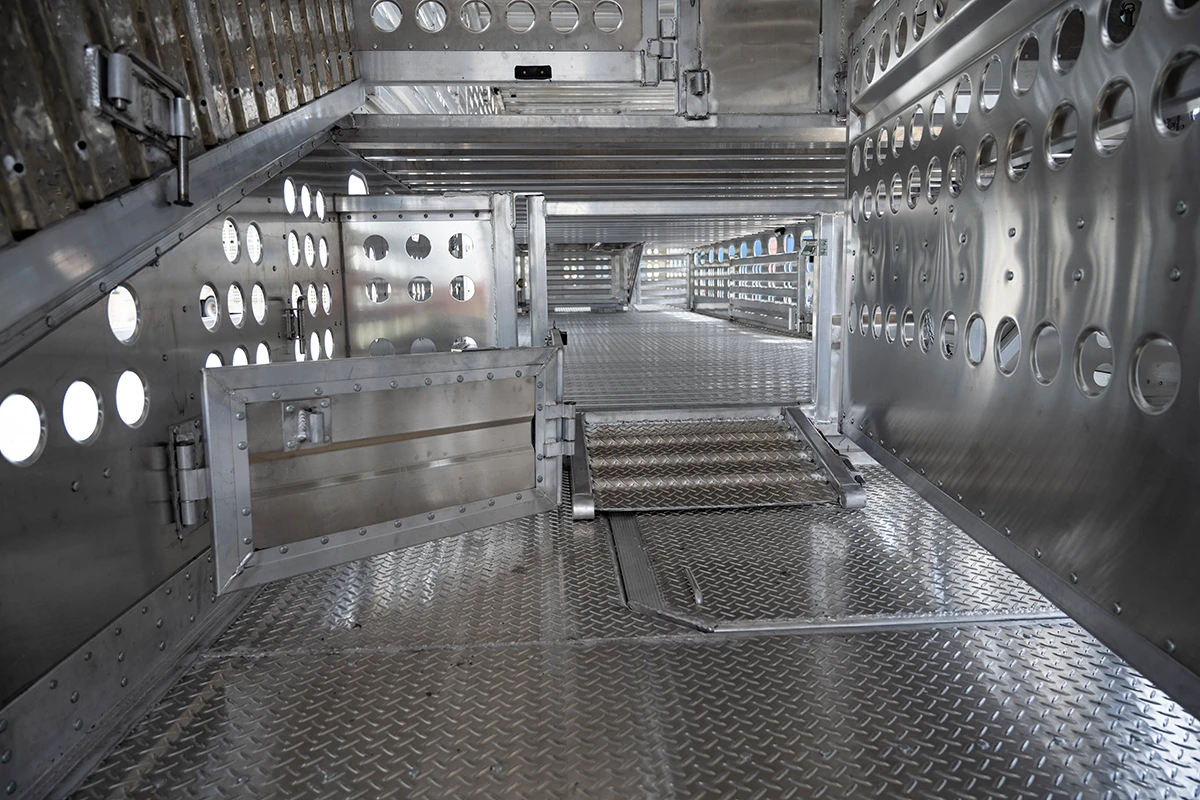

Single-Handed Drop Ramp
Drop ramps at the nose and doghouse create an easy one-handed operation creating a safer work space for drivers.

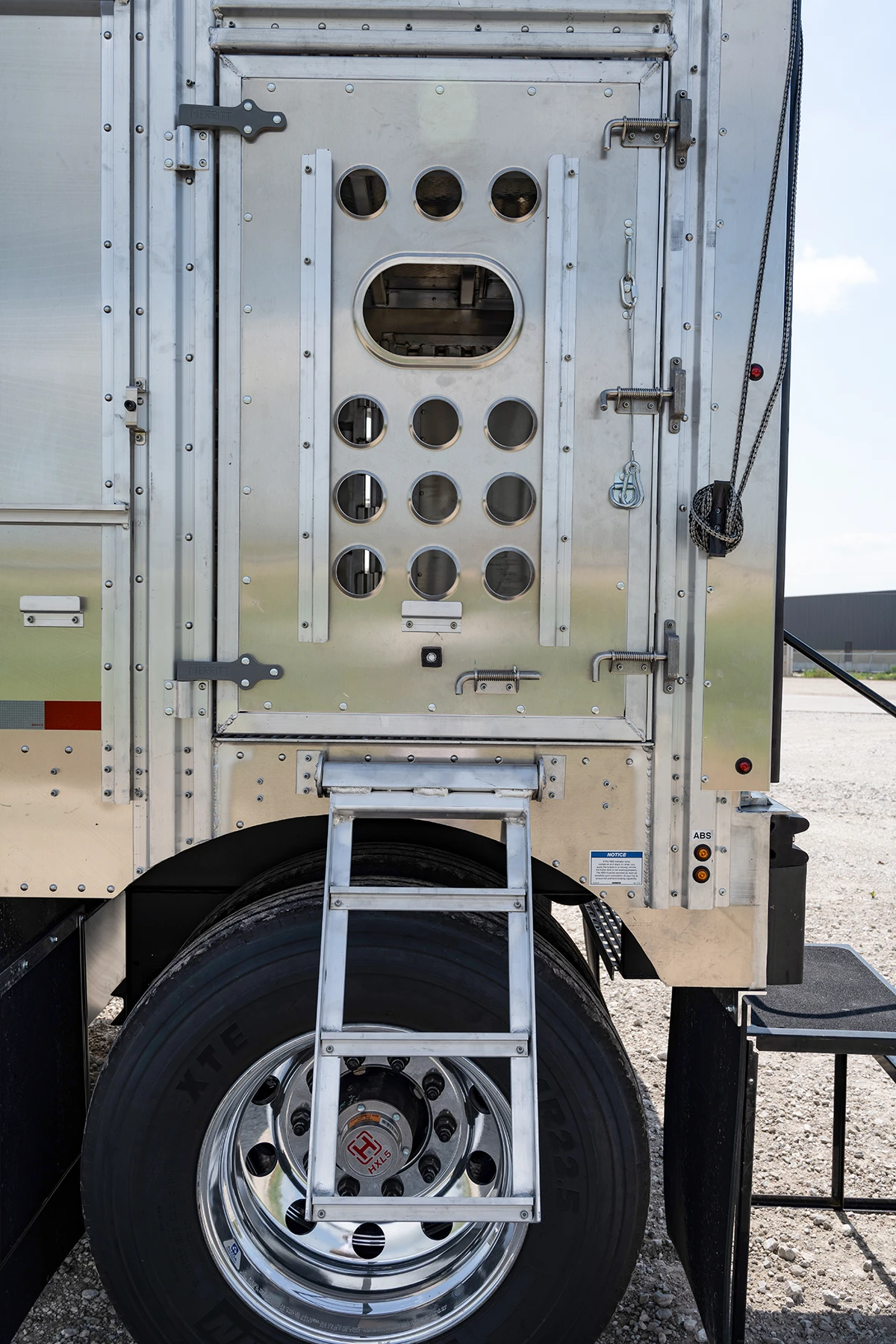

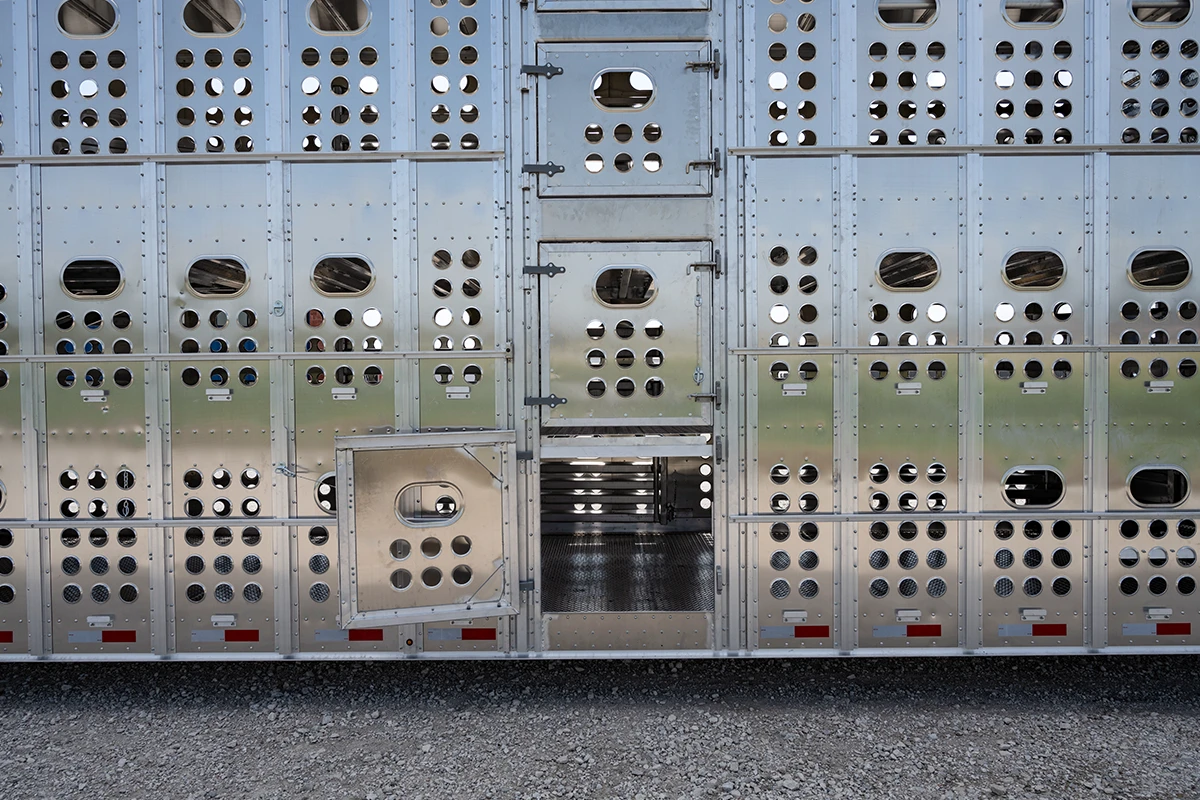

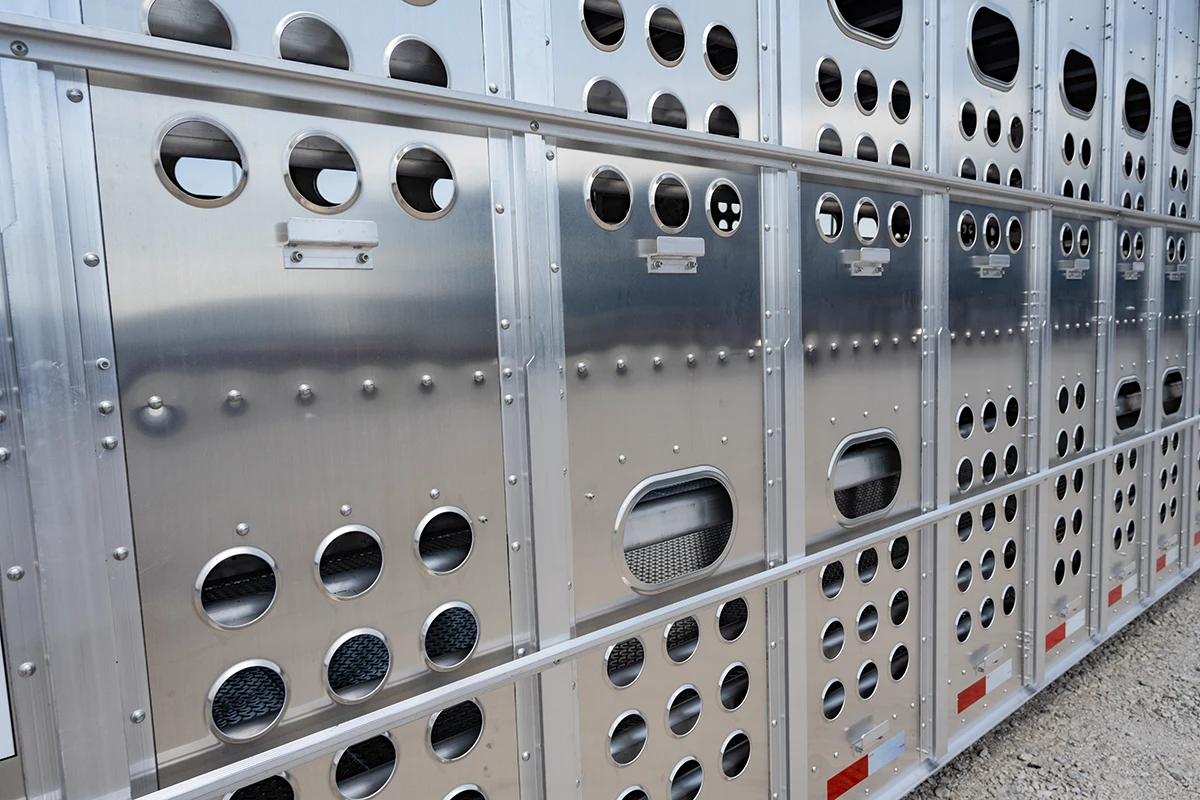

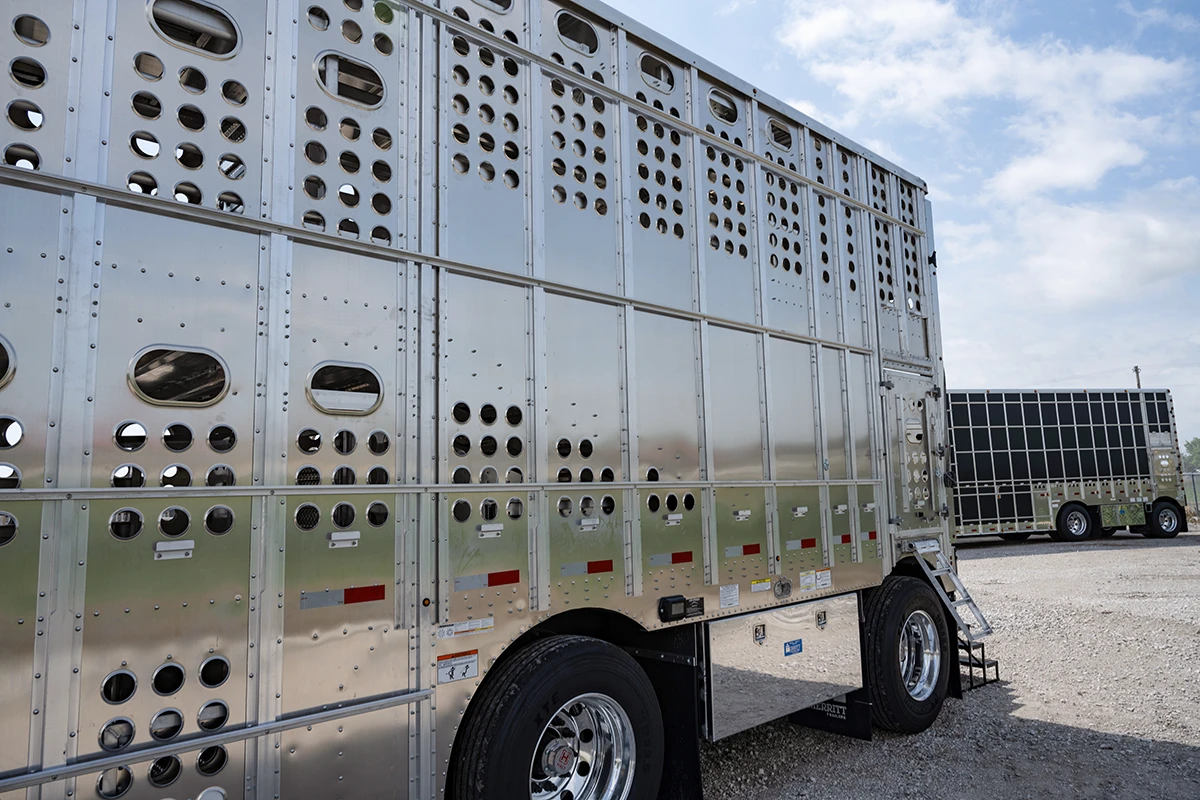

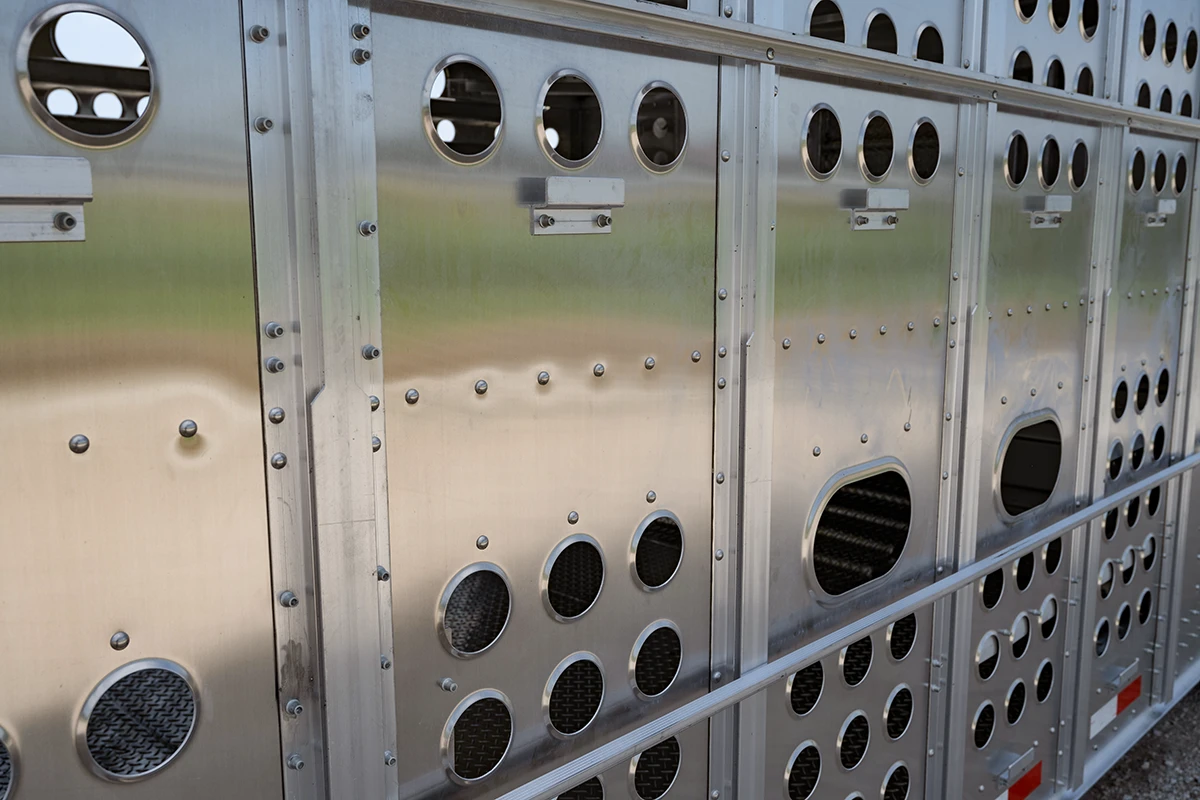

Superior Ventilation
The 3” round hole creates an air vortex that literally sucks air into the trailer as it travels down the road. No other design can create this effect. The double-embossed large viewing hole will resist dents and allow for better visual inspection of your livestock. Using punched side doors your Merritt will have superior ventilation that provides positive airflow and ventilation in any conditions.

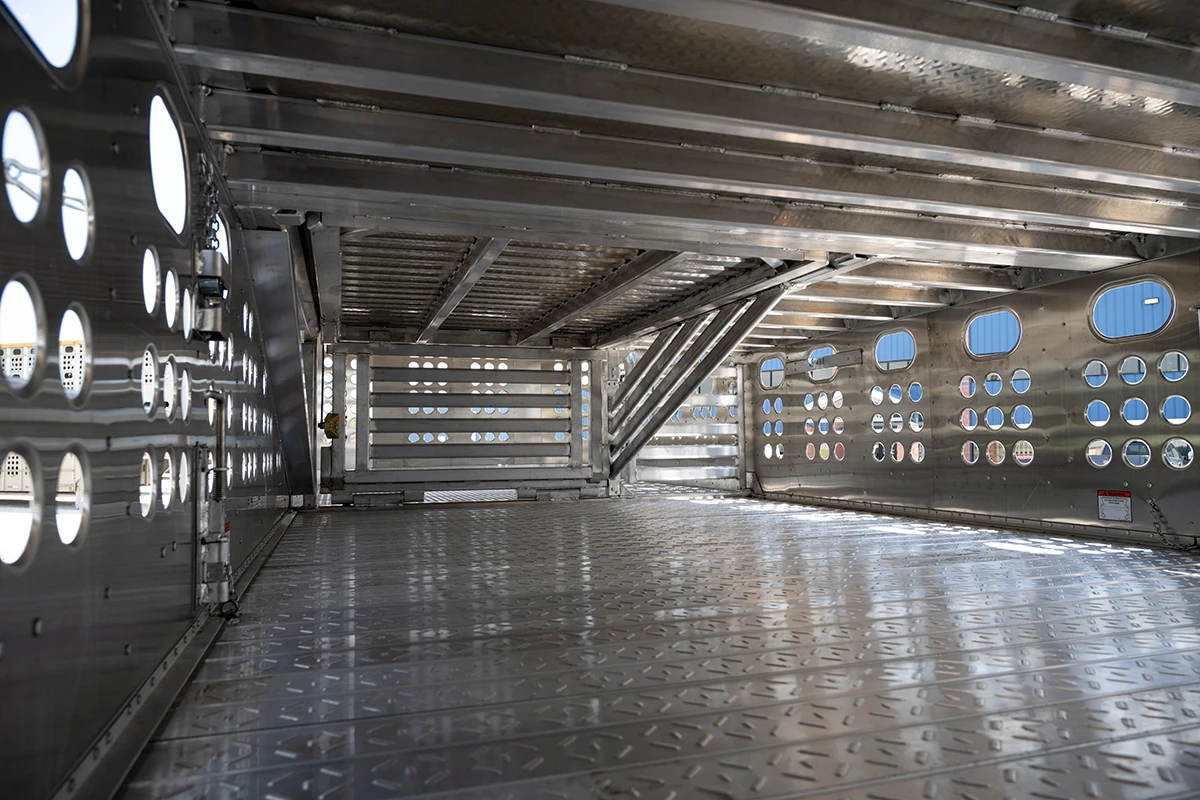

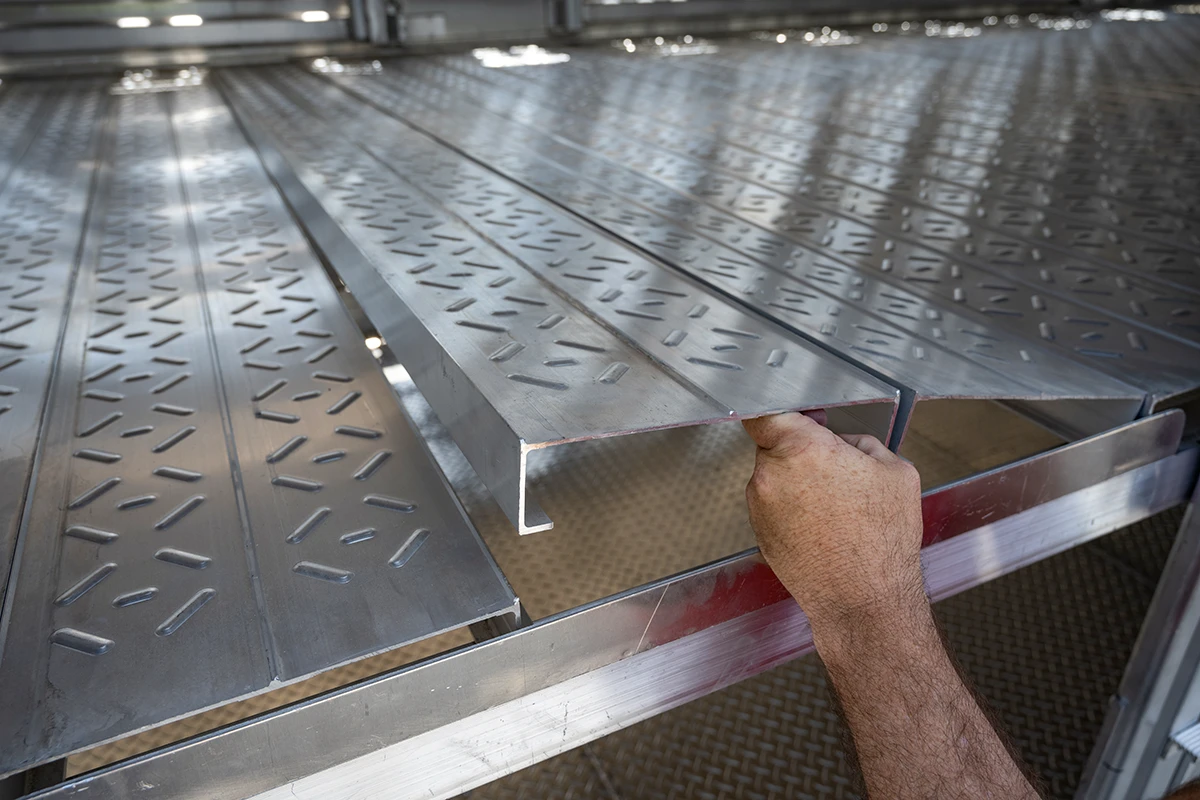

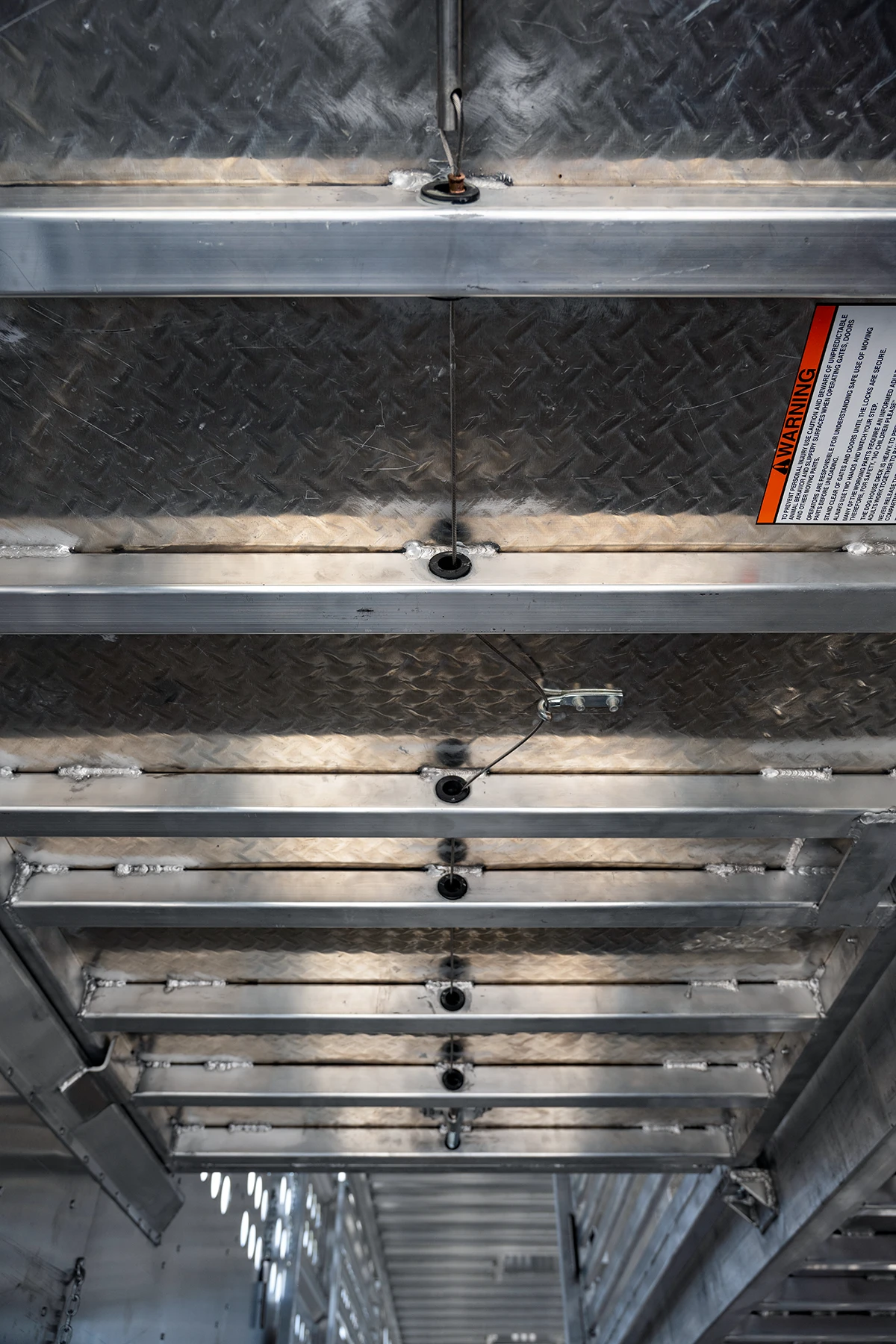

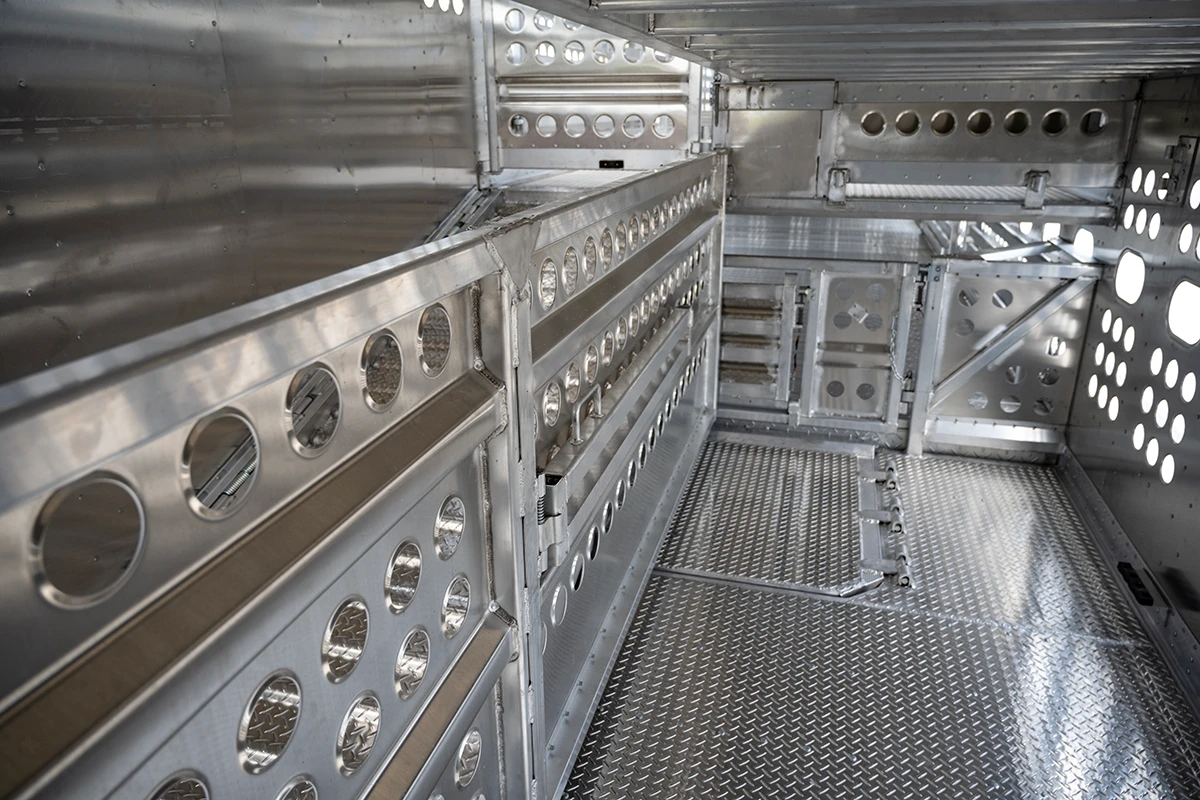

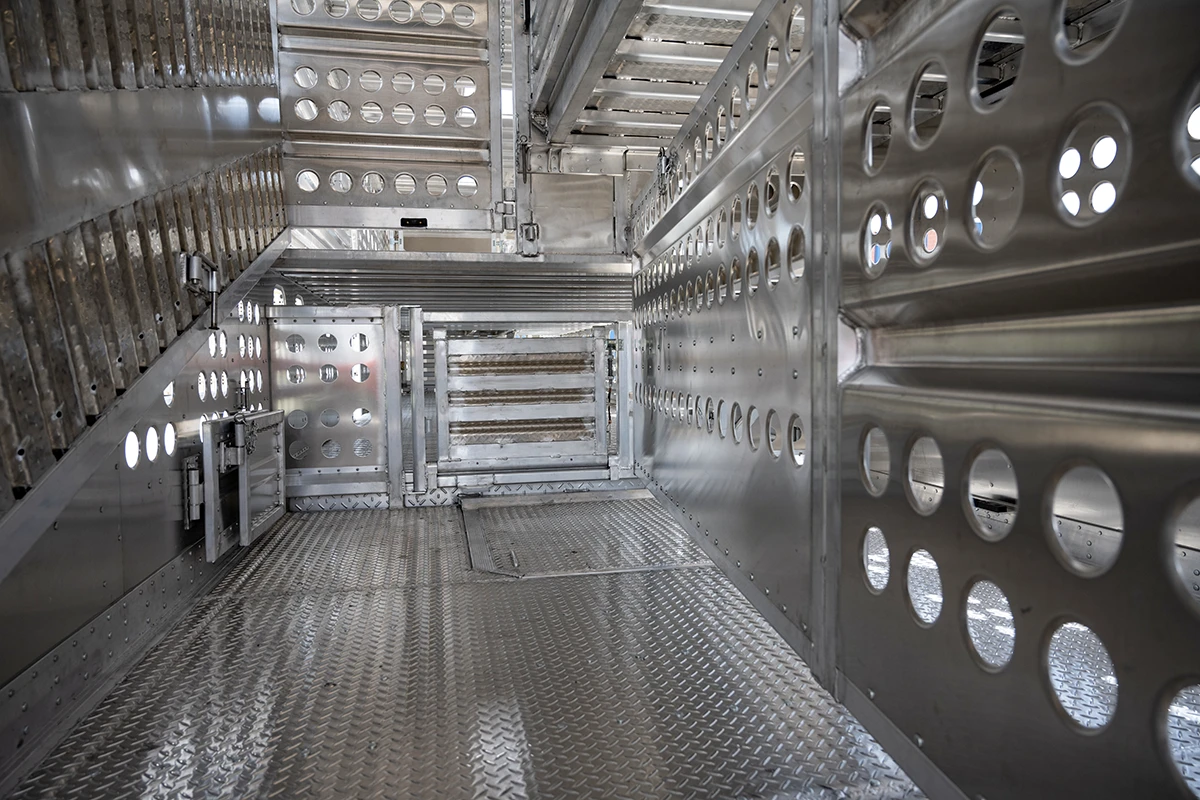

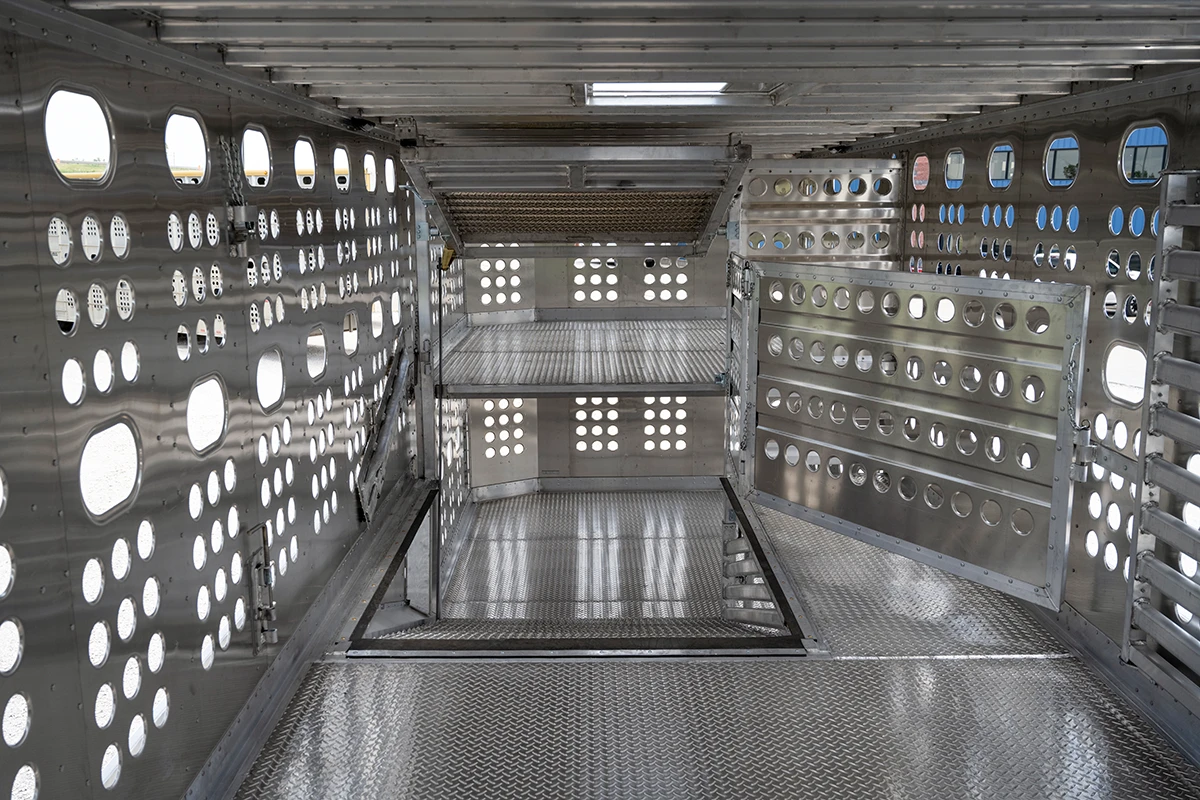

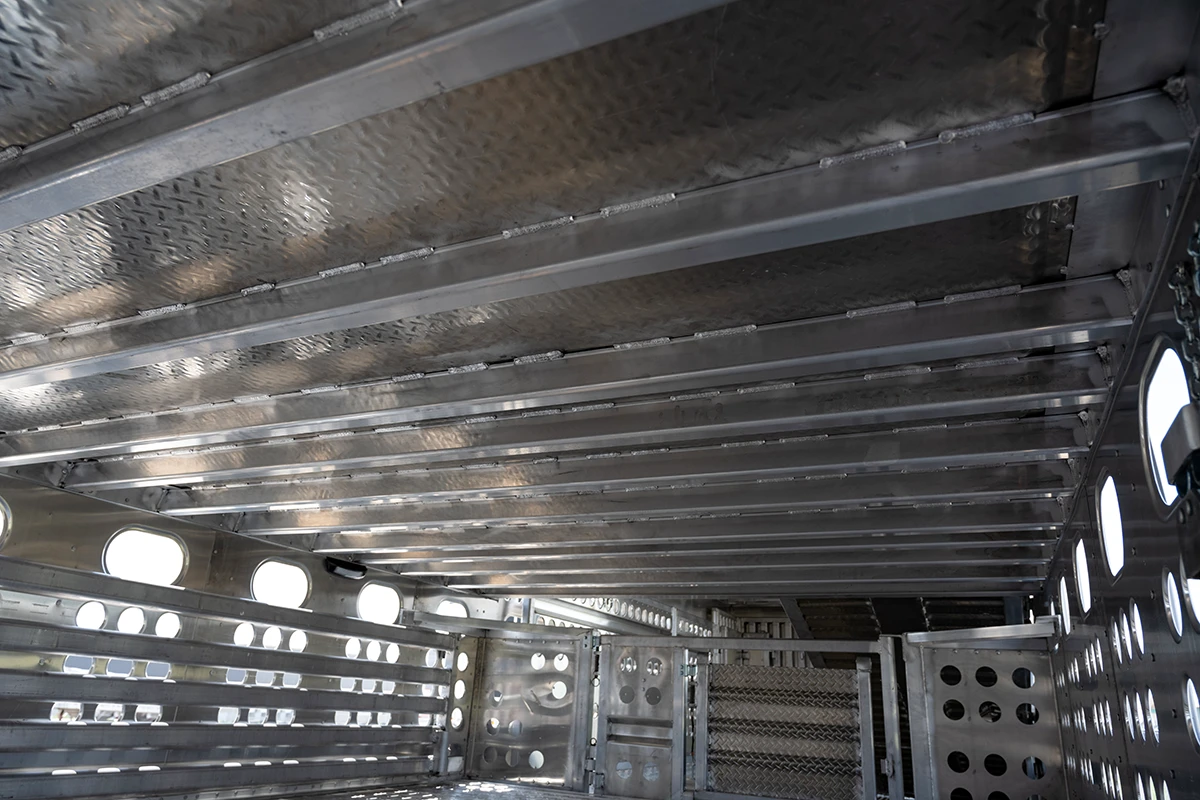

The Strongest Hog Deck in the Industry
Bio-security decks provide safe and easy cleaning of the trailer that will aid in disease control.
Popular Hog Legend Trailer Options
30” Side Door Holdback
30″ side door holdbacks allow for easy washouts without the doors closing on you
Crank-Up Front Deck
No need to throw deck any more. Two or three-position crank-up decks are fast and easy and provide better animal footing than regular planks. A solid deck section means less freezing and worn hinges after years of use.

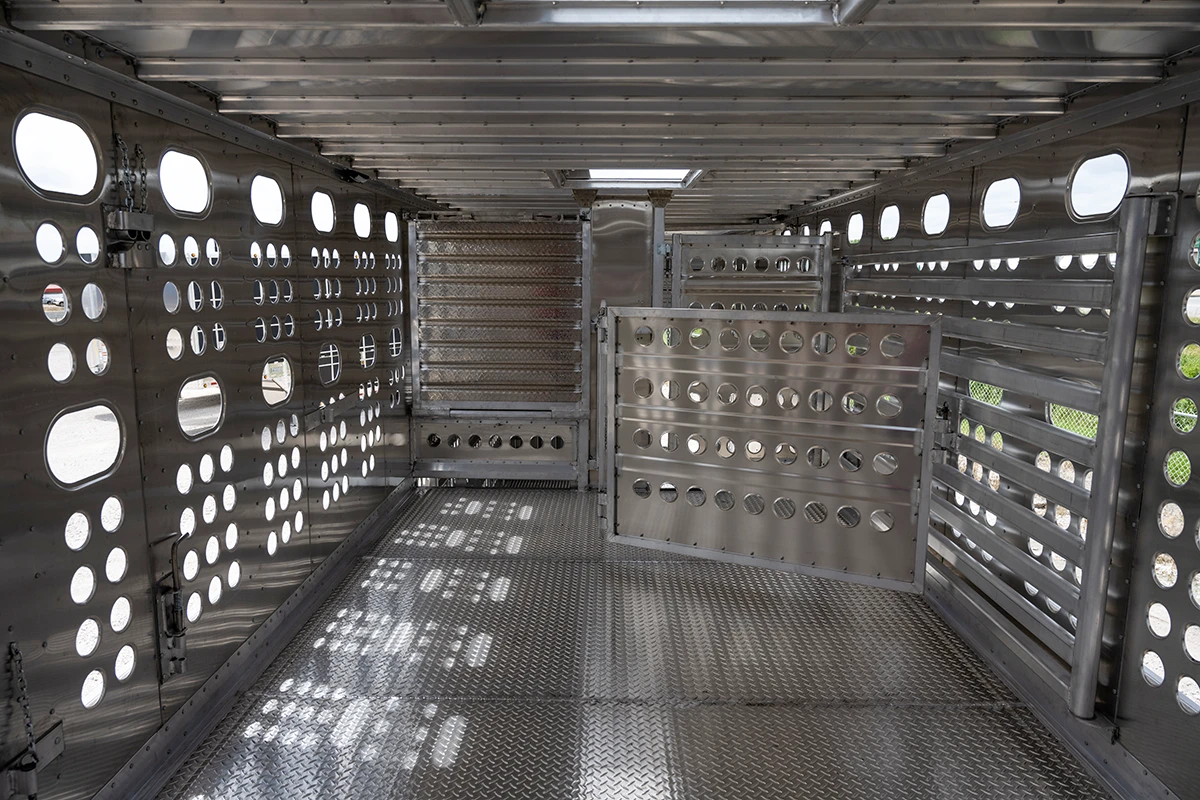

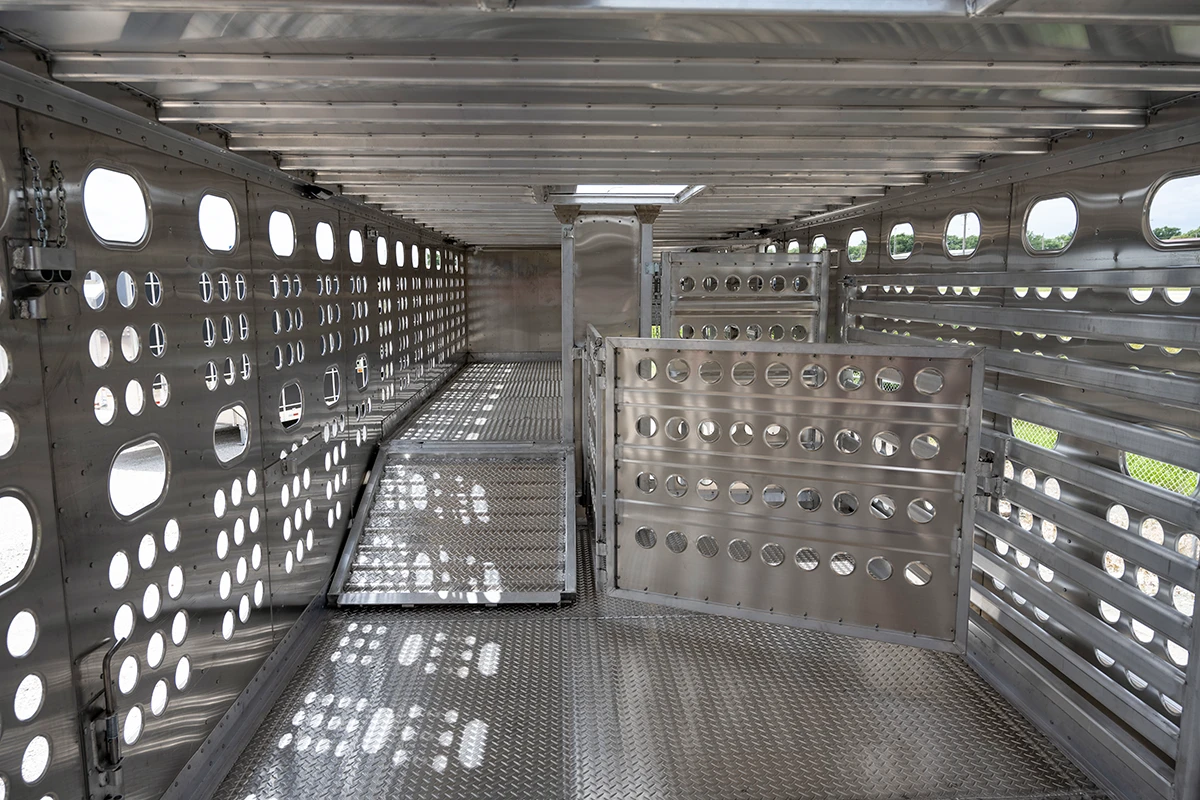

Extra Divide Gates
Need more compartments to haul split loads? Adding extra center gates is the answer.
Folding Guide Gate
Folding guide gates with protective hiding panels allow drivers to remain safely in the trailer and protected from animals while being unseen providing a smoother loading process.

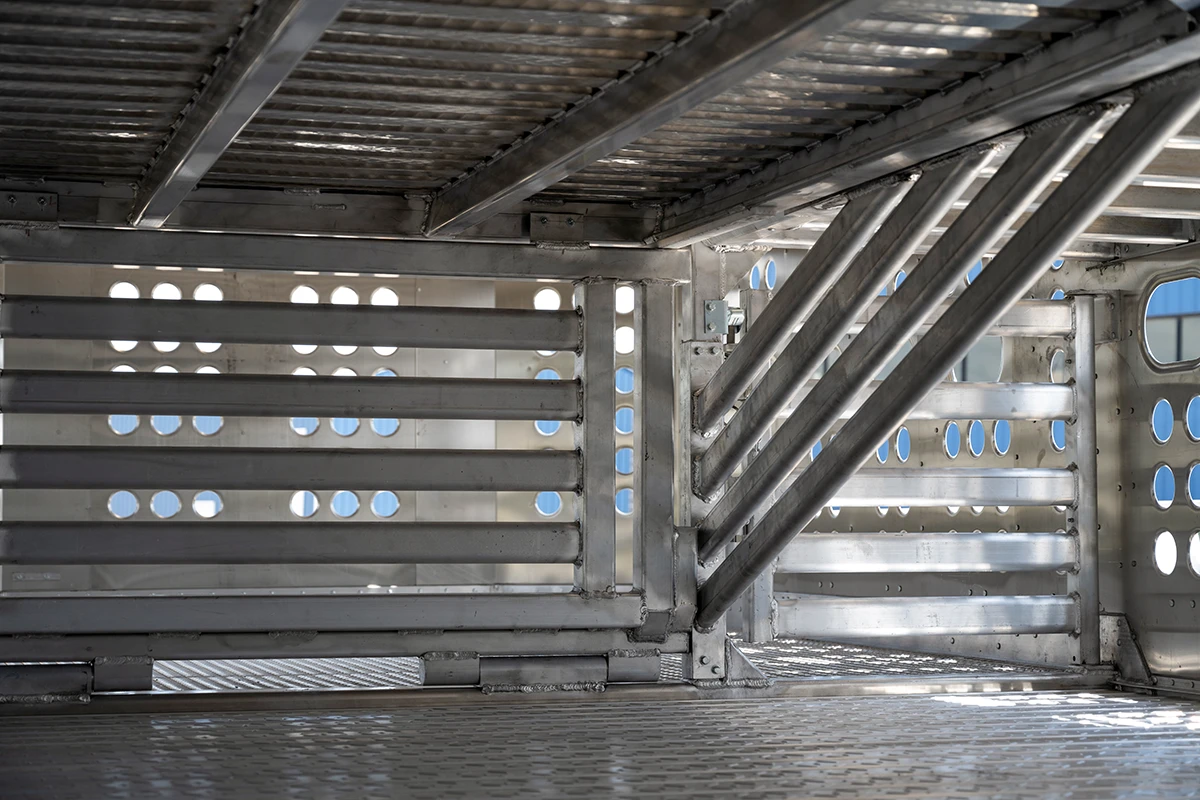

Front Funnel Gate
Tube or panel style for better and safer livestock handling. Double-locking stainless steel pins mean more strength when you need it. Shown with optional threshold cleating.

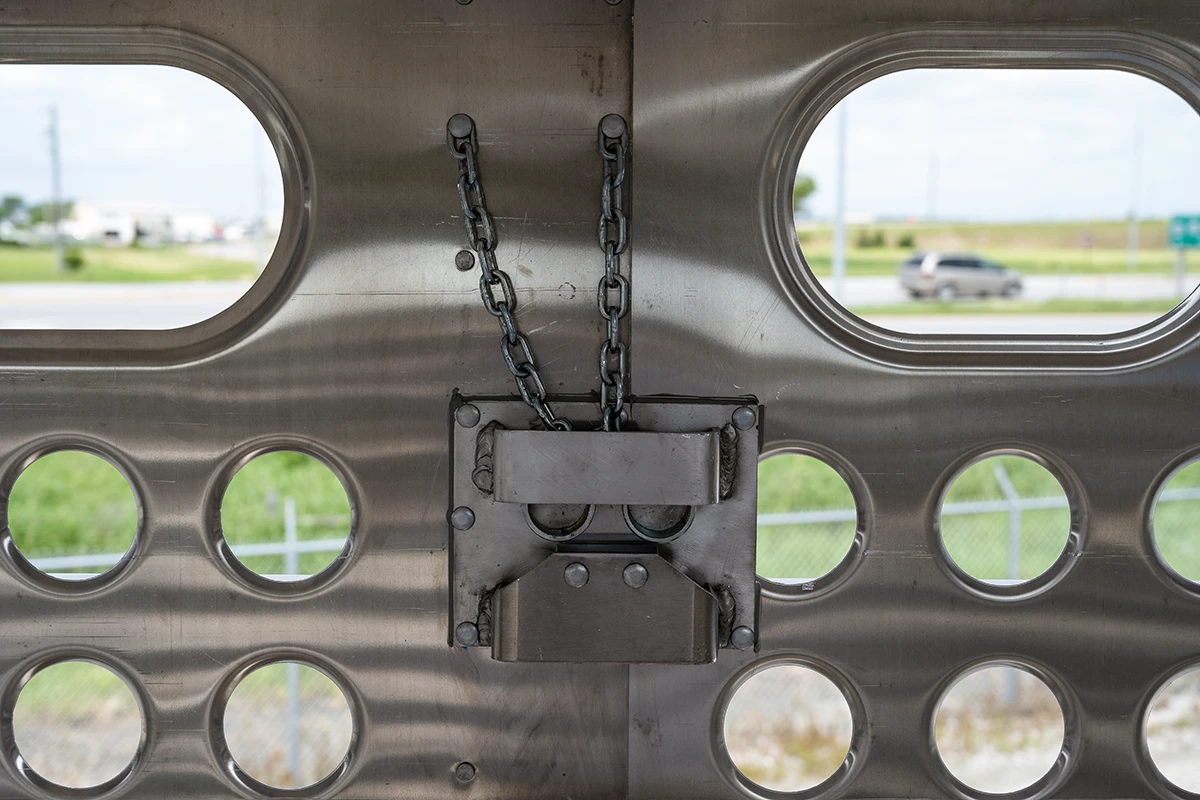

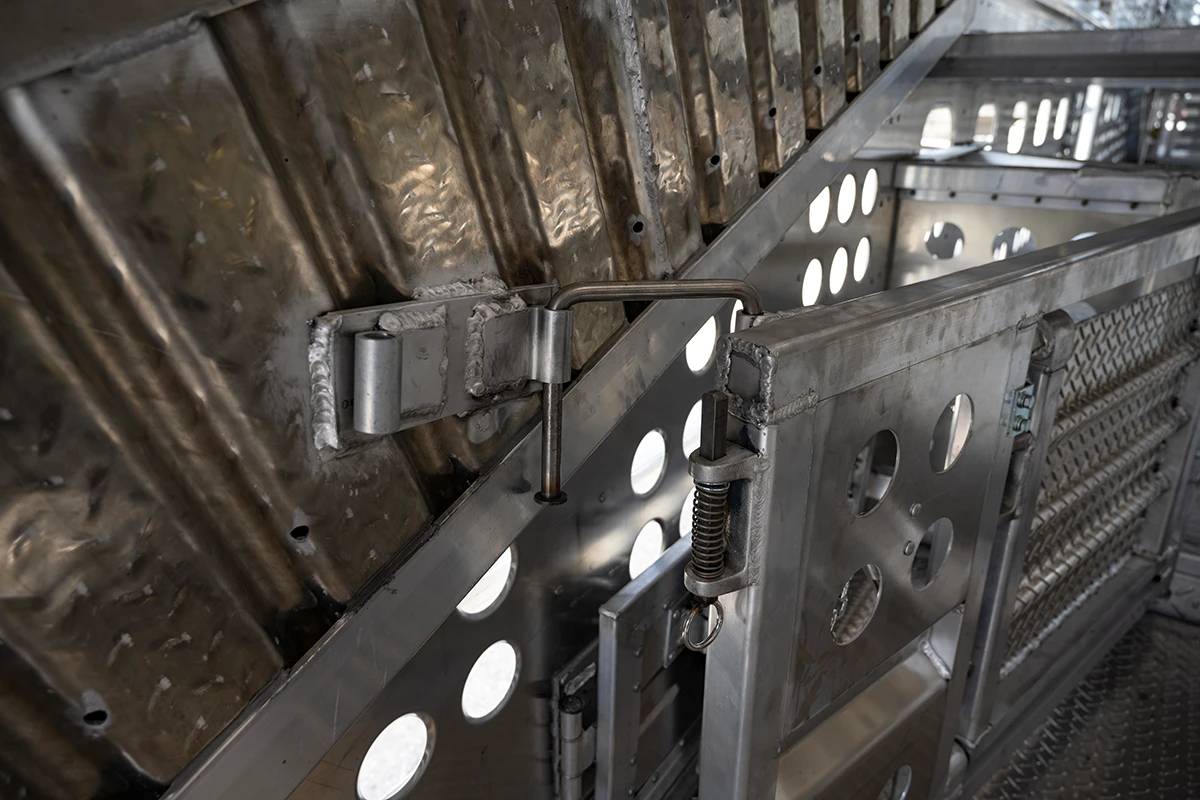

Gate Latch
Spring-loaded drop pins to lock gates are only one of the many latching systems available at Merritt Trailers.
Guide Gate Support Arm
The folding support arm provides a solid support for the guide panel.
Lay-Down Doghouse
Single-pull handles allow easy one-handed operation for lowering the foldable doghouse, leaving the other hand to gently guide the floor to its resting place.
Roll-Up Door Fillers
Merritt’s door gap filler keeps livestock warmer in the winter by eliminating the wind that comes in through the gate. This option is also removable for warmer months when more airflow is needed.
Stainless Steel Sheeting
Shine up your front & rear with the high-polished, 14 gauge, full sheet & post stainless steel package. This is not a glue-on or wrap-around.

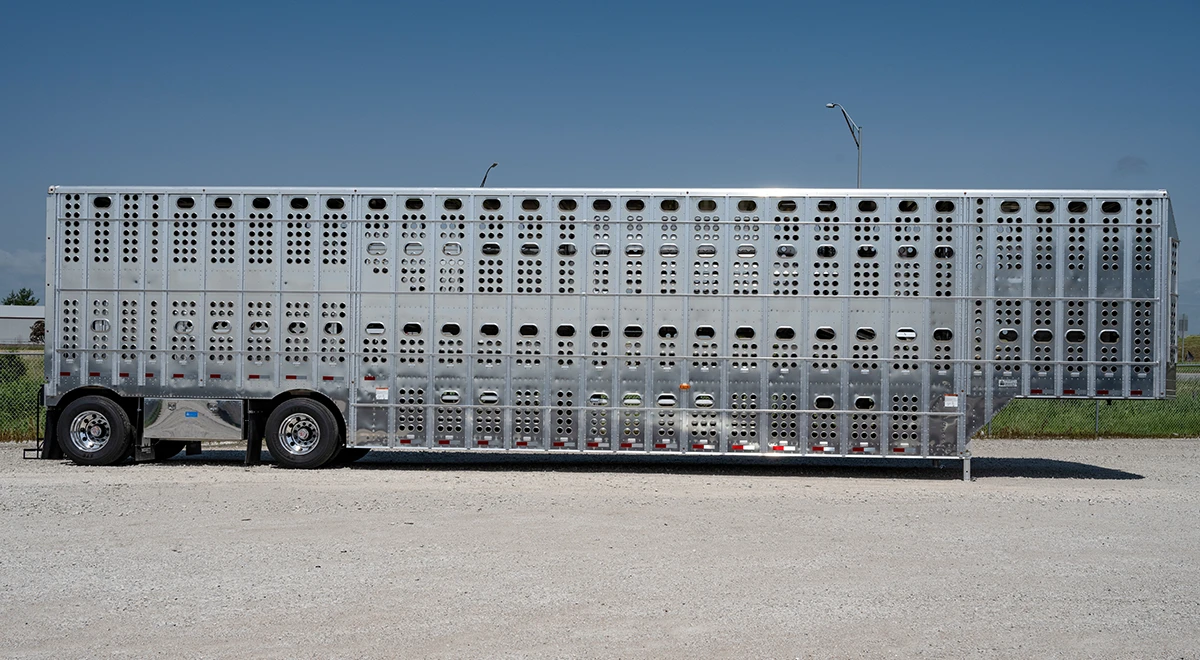

Technical Specs
Length:
48’ to 53’ total lengths
Width:
102” total width; 100” inside width
Height:
13’6”, 13’ 7/16” and 14’ tall

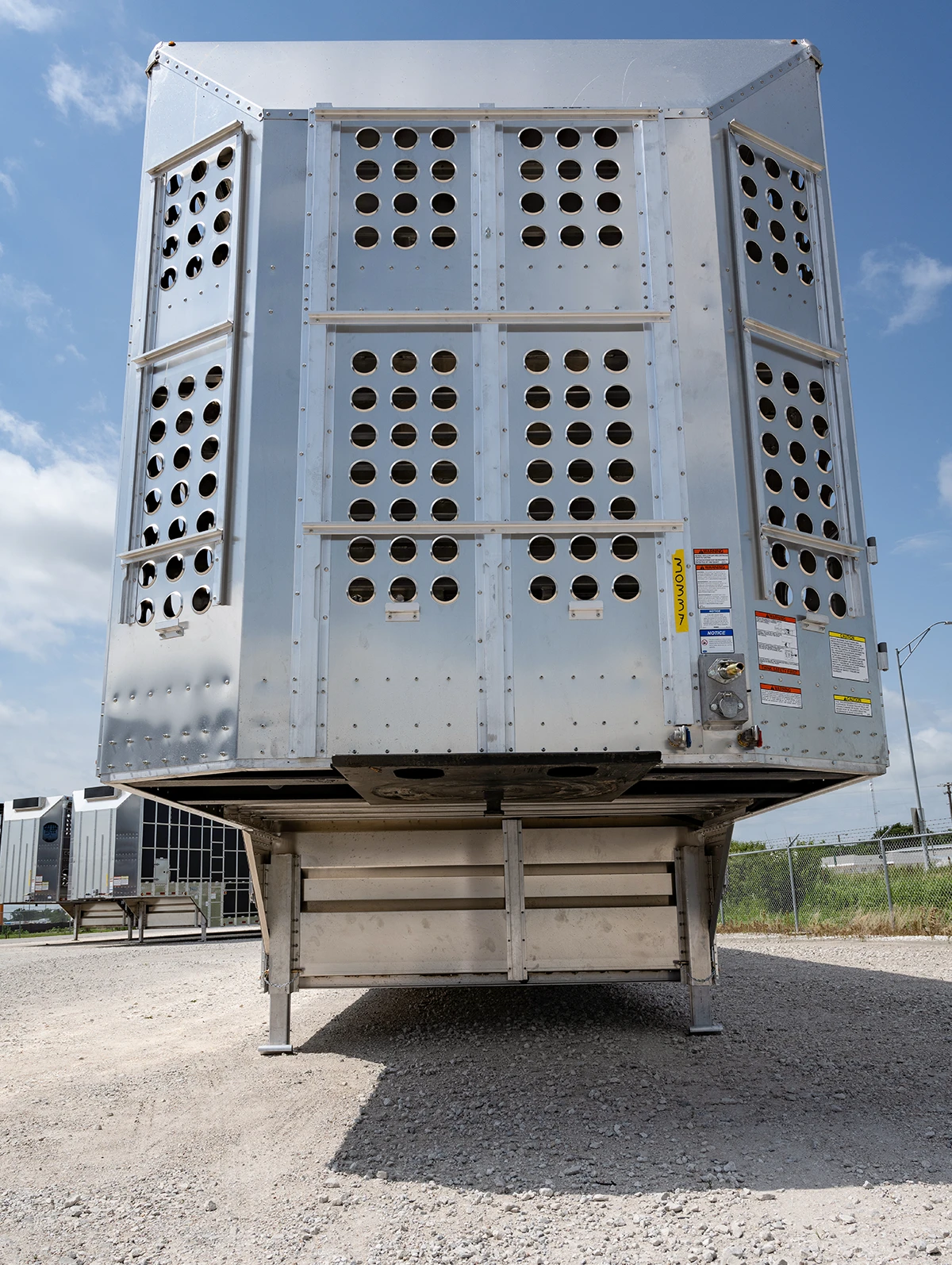

Nose:
Innovative tapered front nose; deck boards or crank lift and tilt options
Side Sheet:
.080 aluminum walls, extruded aluminum post
LED Lights:
2” mirrored truck light, ¾” penny-style lights, load lights

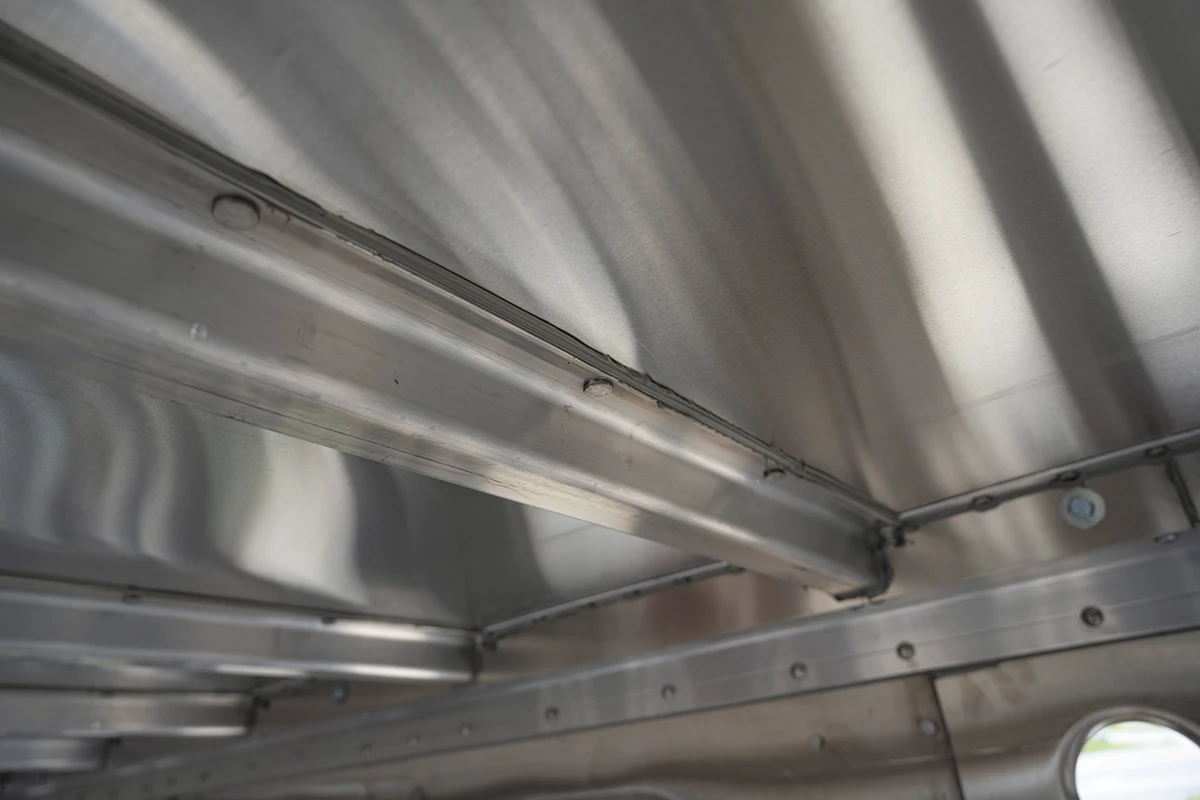

Roofs:
0.50" aluminum skinned fully riveted to roof bows

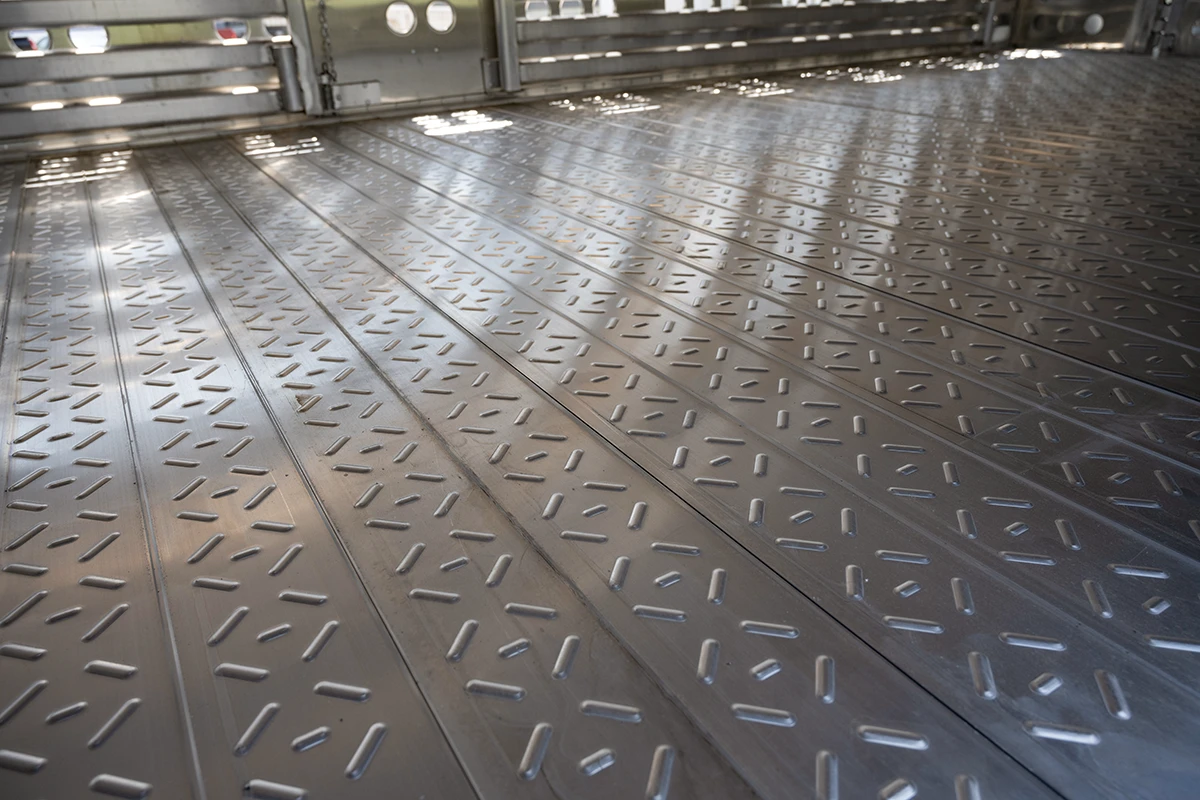

Flooring:
Standard with .125 high grip diamond plate or optional .157 flat flooring welded to 3" I-beam construction
Gates:
Panel and tube-style gates with multiple hardware options
Rear Frame:
Stationary, ¾, or full laydown
Decks:
Standard two-deck pots, or multiple hog and sheep decks options with varying deck clearance
Suspensions:
Hendrickson Intraax air ride suspensions
Axles:
Hendrickson 22,500 # axles, 5” round with auto slack adjusters
Brakes:
Extended life 16.5 x 7 air brakes, and Maxx22T air disc

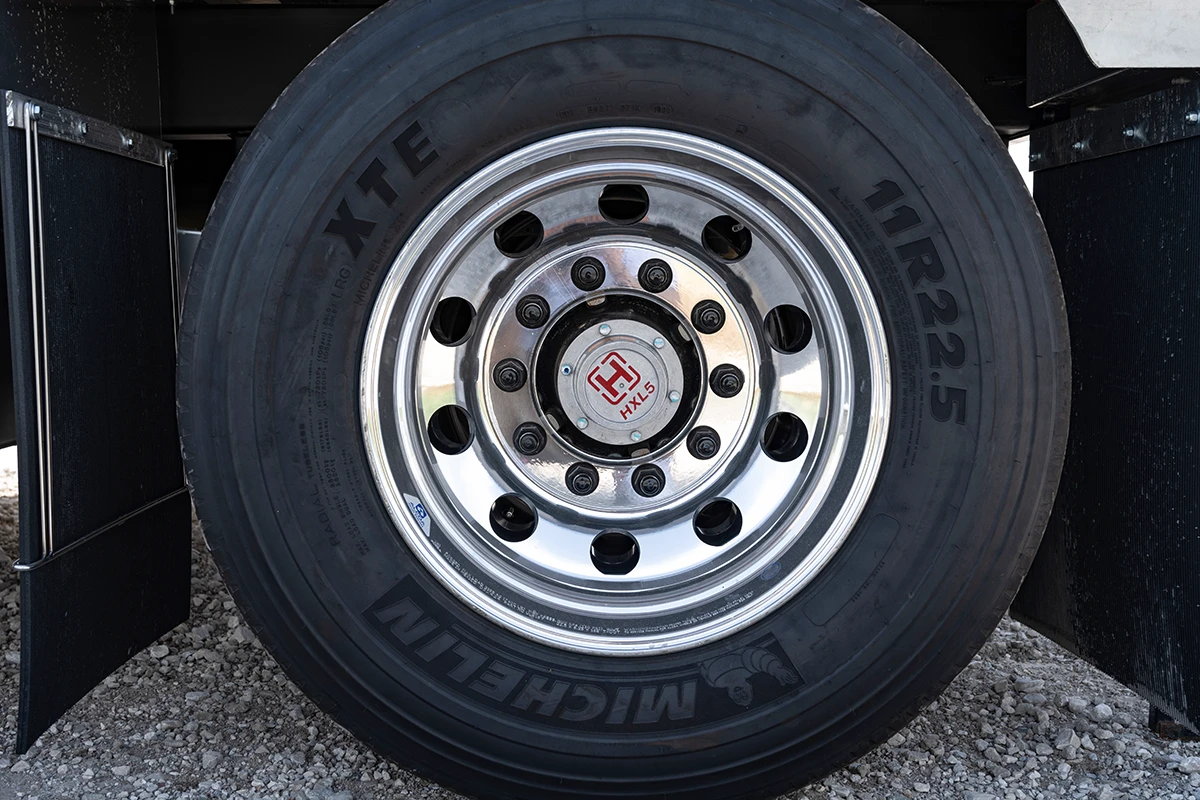

Hubs:
Aluminum Hubs – 10-hole uni-mount
Drums:
Centrifuge brake drums
Tires:
Michelin and Goodyear tires
See how quality, design, durability, lightweight and animal health and handling can all come together.
